CUTLER HAMMER BAB2050 Image 1
CUTLER HAMMER BAB2050 Image 2
CUTLER HAMMER BAB2050 Image 3
content loaded
CUTLER HAMMER BAB2050 Image 1

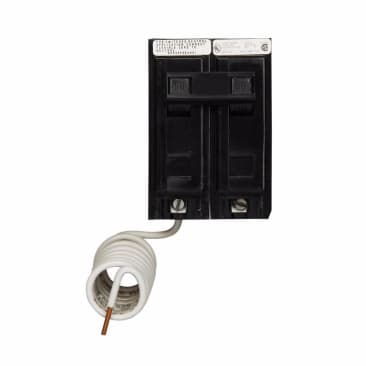

CUTLER HAMMER BAB2050 2 POLE 50 AMP BOLT-IN BREAKER

MFR Part #: BAB2050
SKU #: 0711462
Brand: EATON
UPC: 786679302507
EATON QuickLag® BAB2050 Type BAB Molded Case Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip
Datacenters, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities and Circuit Protection Applications
CSA Certified | UL 489 | PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

EATON QuickLag® Molded Case Circuit Breaker, Type BAB, 120/240 VAC, 50 A, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 2 Pole, Extended Tang Line/Aluminum Box Lug Load Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in L x 2-1/2 in W x 2-1/2 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Product Details

EATON QuickLag® Molded Case Circuit Breaker, Type BAB, 120/240 VAC, 50 A, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 2 Pole, Extended Tang Line/Aluminum Box Lug Load Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in L x 2-1/2 in W x 2-1/2 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Attributes

Amperage Rating: 50 A
Country Of Origin: Dominican Republic
Number of Poles: 2
Connection Type: Bolt-On, Extended Tang Line/Aluminum Box Lug Load
Dimensions: 3 in L x 2-1/2 in W x 2-1/2 in H
Frame Type: BAB
Height: 4.8 in
Interrupt Rating: 10 kA
Length: 3.8 in
Mounting Type: Bolted-On
Phase: 1 ph
Temperature Rating: 40 deg C
Terminal Type: Extended Tang Line
Trip Type: Non-Interchangeable Thermal Magnetic, Non-Interchangeable, Thermal Magnetic
Type: Type BAB
Voltage Rating: 120/240 VAC
Width: 2.2 in
Wire Size: 14 to 4 AWG

Features

  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field mountable accessories make installation and on-site custom configuration easy

Resources

Owners/User Manual
Specification Sheet
