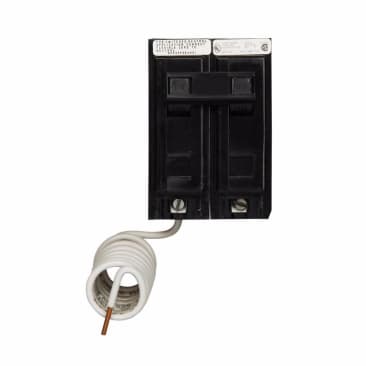

CUTLER HAMMER BAB2100 2 POLE 100 AMP BOLT-IN BREAKER

MFR Part #: BAB2100
SKU #: 0711466
Brand: EATON
UPC: 786679303009
EATON QuickLag® BAB2100 Type BAB Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip
Circuit Protection, Datacenters, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities and Industrial Applications
CSA Certified | HACR Rated | UL 489

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 120/240 VAC, 100 A, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 ph, 8 to 1/0 AWG Wire, Bolted-On Mounting, 3.8 in L x 2.3 in W x 4.8 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 120/240 VAC, 100 A, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 ph, 8 to 1/0 AWG Wire, Bolted-On Mounting, 3.8 in L x 2.3 in W x 4.8 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Attributes

Amperage Rating: 100 A
Country Of Origin: Dominican Republic
Number of Poles: 2
Connection Type: Bolt-On
Dimensions: 3.8 in L x 2.3 in W x 4.8 in H
Frame Type: BAB
Height: 3 in
Interrupt Rating: 10 kA
Length: 3-1/2 in
Mounting Type: Bolted-On
Phase: 1 ph, 1
Terminal Type: Extended Tang Line
Trip Type: Non-Interchangeable Thermal Magnetic, Non-Interchangeable, Thermal Magnetic
Type: Type BAB
Voltage Rating: 120/240 VAC
Width: 1-3/8 in
Wire Size: 8 to 1/0 AWG

Features

  • Flexible power feed connection
  • Field mountable accessories make installation and on-site custom configuration easy
  • Switching duty rated for 120 VAC fluorescent light applications

Resources

Owners/User Manual
Specification Sheet
