WESTINGHOUSE BAB3015H Image 1

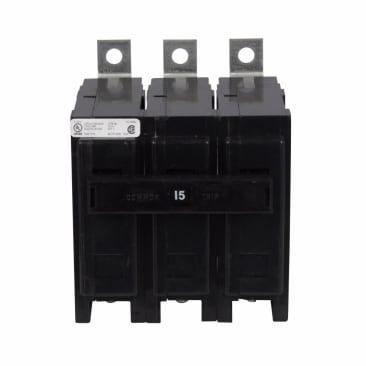

EATON BAB3015H 3 POLE 15 AMP BOLT-IN BREAKER

MFR Part #: BAB3015H
SKU #: 0711467
Brand: EATON
UPC: 786679303153
EATON QuickLag® BAB3015H Type BAB Miniature Circuit Breaker, 240 VAC, 15 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
Datacentres, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities and Industrial Applications
CSA Certified | UL Listed | PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 240 VAC, 15 A, 10 kA Interrupt, Non-Interchangeable/Thermal Magnetic Trip, 3 Pole, Extended Tang Line/Box Lug Load, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.8 in L x 3.2 in W x 4.9 in H

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 240 VAC, 15 A, 10 kA Interrupt, Non-Interchangeable/Thermal Magnetic Trip, 3 Pole, Extended Tang Line/Box Lug Load, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.8 in L x 3.2 in W x 4.9 in H

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Attributes

Amperage Rating: 15 A
Country Of Origin: Dominican Republic
Number of Poles: 3
Connection Type: Extended Tang Line/Box Lug Load
Dimensions: 3.8 in L x 3.2 in W x 4.9 in H
Interrupt Rating: 10 kA
Mounting Type: Bolt-On
Temperature Rating: 40 deg C
Trip Type: Non-Interchangeable/Thermal Magnetic
Type: Type BAB
Voltage Rating: 240 VAC
Wire Size: 14 to 4 AWG

Features

  • Flexible power feed connection
  • Field mountable accessories make installations and on-site custom configuration easy

Resources

Catalog
Specification Sheet
