EATON BAB3020H Image 1

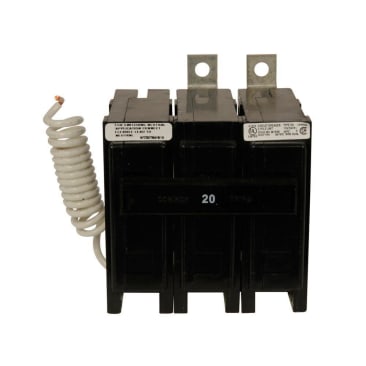

EATON BAB3020H BAB 20A 3-POLE 10KAIC INDUSTRIAL THERMAL MAGNETIC CIRCUIT BREAKER

MFR Part #: BAB3020H
SKU #: 0711468
Brand: EATON
UPC: 786685332581
EATON QuickLag® BAB3020H Type BAB Miniature Circuit Breaker, 240 V AC, 20 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Datacentres, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities Applications
CSA Certified | UL Listed | PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 240 V AC, 20 A, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, Extended Tang Line Terminal, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3-3/8 x 3 x 3-1/2 in

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 240 V AC, 20 A, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, Extended Tang Line Terminal, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3-3/8 x 3 x 3-1/2 in

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Attributes

Amperage Rating: 20 A
Country Of Origin: Dominican Republic
Number of Poles: 3
Connection Type: Extended Tang Line Terminal
Dimensions: 3-3/8 x 3 x 3-1/2 in
Interrupt Rating: 10 kA
Mounting Type: Bolt-On
Temperature Rating: 40 deg C
Trip Type: Thermal Magnetic
Type: Type BAB
Voltage Rating: 240 V AC
Wire Size: 14 to 4 AWG

Features

  • Flexible power feed connection
  • Field mountable accessories make installations and on-site custom configuration easy
