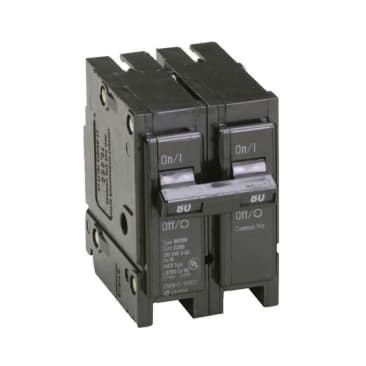

EATON BR280 Image 3

EATON BR280 80A 2-POLE PUSH IN BREAKER

MFR Part #: BR280
SKU #: 1291738
Brand: EATON
UPC: 400051902696
EATON BR280 Type BR Circuit Breaker, 120/240 VAC, 80 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Circuit Protection and Type BR Load Center
BAA Compliant|Federal Specification W-C-375|UL 489

EATON Circuit Breaker, Type BR, 120/240 V AC, 80 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, 8 to 1/0 AWG Wire, Plug-On Mount, 40 deg C, 3 in L x 2 in W x 3 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Product Details

EATON Circuit Breaker, Type BR, 120/240 V AC, 80 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Handle Actuator, 8 to 1/0 AWG Wire, Plug-On Mount, 40 deg C, 3 in L x 2 in W x 3 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Attributes

Amperage Rating: 80 A
Mounting Type: Plug-On
Number of Poles: 2
Actuator Type: Handle
Dimensions: 3 in L x 2 in W x 3 in H
Interrupt Rating: 10 kA
Phase: 1
Temperature Rating: 40 deg C
Trip Type: Thermal Magnetic
Type: Type BR
Voltage Rating: 120/240 VAC
Wire Size: 8 to 1/0 AWG

Features

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • Standard interrupting capacity
