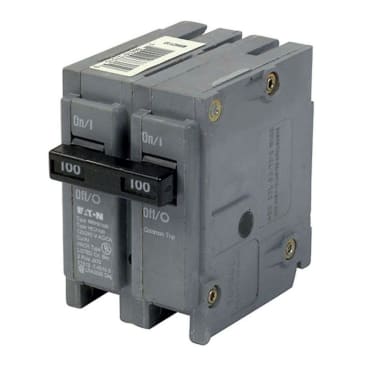

EATON BRH2100 100A 120/240V 2-POLE THERMAL MAGNETIC PLUG-IN CIRCUIT BREAKER
Product Details
Attributes
Features
Resources
EATON Circuit Breaker, Type BR, 120/240 V AC, 100 A, 60 Hz, 22 kA Interrupt, 2 Pole, 1 ph, Handle Actuator, Box Lug/Clamp, 4 to 1/0 AWG Wire, Plug-On Mount, 40 deg C, 2 in L x 2.9 in W x 2.5 in H, Thermoset
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
- All are type IC (interchangeable) devices, several ratings are SWD and HARC approved
- Each pole of the circuit breaker will provide inverse time delay overload and instantaneous short circuit protection by means of both thermal and magnetic sensors
- The circuit breaker calibration shall not be affected by environmental changes in relative humidity
- All circuit breakers shall be operated by a toggle type handle and multipole circuit breakers shall have an internal common trip mechanism
- Contacts shall be of non-welding silver alloy
- All circuit breakers shall have the trip rating inscribed on the handle on each circuit breaker pole
- Circuit breakers shall be completely enclosed in a molded case of thermoset material
- All terminals shall be listed for use with copper/aluminum conductors
- Terminals shall be of the box lug or clamp type design
- The terminals shall meet UL 486B requirements and shall be suitable for use with either 60 or 75 deg C wire
Product Details
EATON Circuit Breaker, Type BR, 120/240 V AC, 100 A, 60 Hz, 22 kA Interrupt, 2 Pole, 1 ph, Handle Actuator, Box Lug/Clamp, 4 to 1/0 AWG Wire, Plug-On Mount, 40 deg C, 2 in L x 2.9 in W x 2.5 in H, Thermoset
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
Attributes
Features
- All are type IC (interchangeable) devices, several ratings are SWD and HARC approved
- Each pole of the circuit breaker will provide inverse time delay overload and instantaneous short circuit protection by means of both thermal and magnetic sensors
- The circuit breaker calibration shall not be affected by environmental changes in relative humidity
- All circuit breakers shall be operated by a toggle type handle and multipole circuit breakers shall have an internal common trip mechanism
- Contacts shall be of non-welding silver alloy
- All circuit breakers shall have the trip rating inscribed on the handle on each circuit breaker pole
- Circuit breakers shall be completely enclosed in a molded case of thermoset material
- All terminals shall be listed for use with copper/aluminum conductors
- Terminals shall be of the box lug or clamp type design
- The terminals shall meet UL 486B requirements and shall be suitable for use with either 60 or 75 deg C wire
