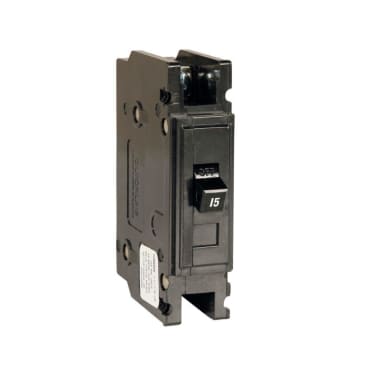

EATON QC1015 Image 1
EATON QC1015 Image 2
EATON QC1015 Image 3
EATON QC1015 Image 4
content loaded
EATON QC1015 Image 1

EATON QC1015 QUICKLAG 15A 120/240V 1-POLE THERMAL MAGNETIC CIRCUIT BREAKER

MFR Part #: QC1015
SKU #: 1295975
Brand: EATON
UPC: 400052034006
EATON QuickLag® QC1015 Type QC Miniature Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment and Circuit Protection, Datacenters - IT Space, CI and Hyper Converged Applications
UL Listed,CSA Certified

EATON QuickLag® Miniature Circuit Breaker, Type QC, 120/240 V AC, 15 A, 60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Cable-In/Cable-Out Connection, Panel Mounting, 40 deg C, 3.7 in L x 1.2 in W x 4.8 in H Dimensions

Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type QC, 120/240 V AC, 15 A, 60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Cable-In/Cable-Out Connection, Panel Mounting, 40 deg C, 3.7 in L x 1.2 in W x 4.8 in H Dimensions

Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options.

Attributes

Amperage Rating: 15 A
Mounting Type: Panel
Number of Poles: 1
Connection Type: Cable-In/Cable-Out
Dimensions: 3.7 in L x 1.2 in W x 4.8 in H
Frequency Rating: 60 Hz
Interrupt Rating: 10 kA
Temperature Rating: 40 deg C
Trip Type: Thermal Magnetic
Type: Type QC
Voltage Rating: 120/240 V AC

Features

  • Complete line of accessories allows customization to fit any applications
  • Switching duty rated for 120 VAC fluorescent light applications

Resources

Owners/User Manual
Specification Sheet
