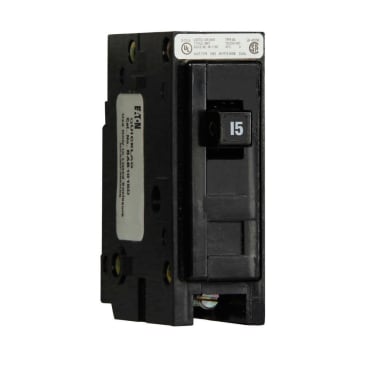

CUTLER HAMMER BAB1015 Image 1
CUTLER HAMMER BAB1015 Image 2
CUTLER HAMMER BAB1015 Image 3
content loaded
CUTLER HAMMER BAB1015 Image 1

CUTLER HAMMER BAB1015 1 POLE 15 AMP BOLT-IN BREAKER

MFR Part #: BAB1015
SKU #: 0711450
Brand: EATON
UPC: 786679301159
EATON QuickLag® BAB1015 Type BAB Molded Case Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable Thermal Magnetic Trip
For industrial applications and protection of panelboards, datacenters, it space, ci and hyper converged, generation - conventional energy, renewable energy, alternative energy, marine vessels and equipment, residential buildings and facilities
CSA Certified | Federal Specification W-C-375B | HACR Rated | UL 489

EATON QuickLag® Miniature Circuit Breaker, Type BAB Molded Case, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3.7 in L x 1.2 in W x 4.8 in H Dimensions

EATON bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from 1, 2 or 3-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from bolt-on types BAB, QBHW, HBAX and HBAW.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type BAB Molded Case, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3.7 in L x 1.2 in W x 4.8 in H Dimensions

EATON bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from 1, 2 or 3-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from bolt-on types BAB, QBHW, HBAX and HBAW.

Attributes

Amperage Rating: 15 A
Connection Type: Steel Box Lug, Bolt-On
Country Of Origin: Dominican Republic
Dimensions: 3.7 in L x 1.2 in W x 4.8 in H
Frame Type: BAB
Frequency Rating: 50/60 Hz
Height: 4.8 in
Interrupt Rating: 10 kA
Length: 3.7 in
Mounting Type: Bolted-On
Number of Poles: 1
Phase: 1 ph, 1
Temperature Rating: 40 deg C
Terminal Type: Extended Tang Line Side
Trip Type: Non-Interchangeable Thermal Magnetic, Thermal Magnetic, Non-Interchangeable
Type: Type BAB Molded Case
Voltage Rating: 120/240 VAC
Width: 1.2 in
Wire Size: 14 to 4 AWG

Features

  • Flexible power feed connection
  • Field mountable accessories make installation and on-site custom configuration easy
  • High intensity discharge

Resources

Owners/User Manual
Specification Sheet
