EATON XTOB012BC1 Image 1

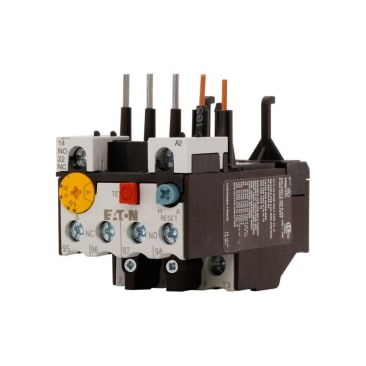

EATON XTOB012BC1 9-12A CLASS B OVERLOAD IEC RELAY

MFR Part #: XTOB012BC1
SKU #: 1310061
Brand: EATON
UPC: 4015082784416
EATON XTOB012BC1 Bi-Metallic Thermal Overload Relay, 9 to 12 A, 1NO-1NC 1 Form A/1 Form B Contact
Stationary Machinery, Equipment, Pumps and Compressors Applications
IEC 60947,CSA Certified,EN 60947,UL Listed,ATEX Compliant,CE Marked,RoHS Compliant

EATON Overload Relay, Bi-Metallic Thermal, Series: XTOB, 9 to 12 A, 1NO-1NC 1 Form A/1 Form B Contact Form, 6 A at 240 V AC Contact, 3 Pole, Surface Mounting, Screw Terminal, IP20 Enclosure, -13 to 131 deg F, 1.76 in W x 3.48 in D x 2.66 in H Dimensions

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Product Details

EATON Overload Relay, Bi-Metallic Thermal, Series: XTOB, 9 to 12 A, 1NO-1NC 1 Form A/1 Form B Contact Form, 6 A at 240 V AC Contact, 3 Pole, Surface Mounting, Screw Terminal, IP20 Enclosure, -13 to 131 deg F, 1.76 in W x 3.48 in D x 2.66 in H Dimensions

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Attributes

Amperage Rating: 9 to 12 A
Contact Form: 1NO-1NC 1 Form A/1 Form B
Contact Rating: 6 A at 240 V AC
Dimensions: 1.76 in W x 3.48 in D x 2.66 in H
Enclosure Type: IP20
Mounting Type: Surface
Number of Poles: 3
Series: XTOB
Temperature Rating: -13 to 131 deg F
Terminal Type: Screw
Type: Bi-Metallic Thermal

Features

  • The XT line of IEC motor thermal overload relays provides an efficient motor protection solution
  • XTOB units can be directly mounted to the contactor or mounted separately
  • Direct connect up to 250 A
  • Stand alone and CT type up to 630 A
  • Large thermal overcurrent range
  • Test button actuator
  • NO-NC auxiliary as standard

Resources

Specification Sheet
