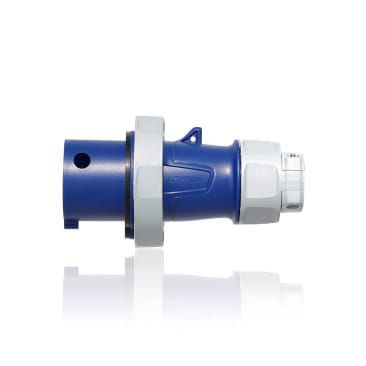

LEVITON 430P9WLEV 30A PIN & SLEEVE PLUG BLUE
MFR Part #: 430P9WLEV
SKU #: 1263580
Brand: Leviton®
UPC: 078477921494
Leviton® 430P9WLEV 3-Phase Watertight Pin and Sleeve Plug With Standard Clamp, 250 VAC, 30 A, 3 Poles, 4 Wires, Blue
5 years Limited
Food and Beverage Facilities, Washdown and Outdoor Applications
CE Certified | CSA C22.2 No. 182.1-13 | NOM-ANCE Certified | UL 1686 C2 | UL 1682 | North American IEC 60309-1/60309-2 | UL 94 V-0 Flammability Rating | UL 94 HB Flammability Rating
Product Details
Attributes
Features
Resources
Leviton® Pin and Sleeve Plug, 3-Phase Watertight, Series: LEV, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Blue, 3.62 in Dia x 6.57 in L Dimensions
Amperage Rating:
30 A
Country Of Origin:
Mexico
Voltage Rating:
250 VAC
Color:
Blue
Dimensions:
3.62 in Dia x 6.57 in L
Enclosure:
IP66/IP67/IP68/IP69K
Grade:
Industrial
Horsepower:
3 hp
Material:
Nylon
NEMA Rating:
NEMA 3R/4X/6P/12
Number of Poles:
3
Number of Wires:
4
Series:
LEV
Temperature Rating:
-40 to 60 deg C
Terminal Type:
Screw
Type:
3-Phase Watertight
- Threaded housing design removes several screws making installation quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Plugs and connectors constructed of impact modified nylon and receptacles and inlets made of PBT
- Nickel plated brass pins and sleeves for added corrosion-resistance
- Watertight and dust tight rated to IP66, IP67, IP68 and IP69K
Product Details
Leviton® Pin and Sleeve Plug, 3-Phase Watertight, Series: LEV, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Blue, 3.62 in Dia x 6.57 in L Dimensions
Attributes
Amperage Rating: 30 A
Country Of Origin: Mexico
Voltage Rating: 250 VAC
Color: Blue
Dimensions: 3.62 in Dia x 6.57 in L
Enclosure: IP66/IP67/IP68/IP69K
Grade: Industrial
Horsepower: 3 hp
Material: Nylon
NEMA Rating: NEMA 3R/4X/6P/12
Number of Poles: 3
Number of Wires: 4
Series: LEV
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: 3-Phase Watertight
Features
- Threaded housing design removes several screws making installation quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Plugs and connectors constructed of impact modified nylon and receptacles and inlets made of PBT
- Nickel plated brass pins and sleeves for added corrosion-resistance
- Watertight and dust tight rated to IP66, IP67, IP68 and IP69K
