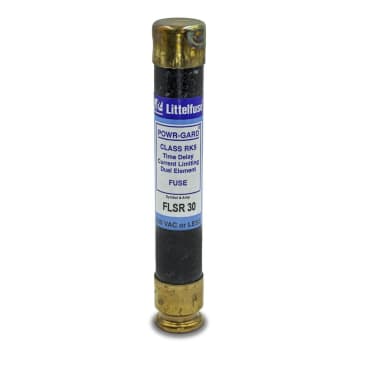

LITTELFUSE FLSR030 Image 1

LITTELFUSE FLSR030 30A DUAL-ELEMENT TIME-DELAY FUSE

MFR Part #: FLSR030
SKU #: 1282427
Brand: Littelfuse®
UPC: 079458170733
Littelfuse® POWR-GARD® FLSR030 FLSR Current Limiting Time Delay Fuse, 30 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains, Motor Branch Circuits and All General Purpose Circuits Applications
UL 248-12 | E81895 | CSA LR29862 | Federal Specification WF-1814 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: FLSR, Non-Indicating, Rejection, 30 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK5, 50/60 Hz, 10 s Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Composite, 13/16 in Dia x 5 in L Body Size

Littelfuse® FLSR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses.

Product Details

Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: FLSR, Non-Indicating, Rejection, 30 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK5, 50/60 Hz, 10 s Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Composite, 13/16 in Dia x 5 in L Body Size

Littelfuse® FLSR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses.

Attributes

Amperage Rating: 30 A
Body Size: 13/16 in Dia x 5 in L
Body Type: Cylindrical
Class: RK5
Country Of Origin: Mexico
Element: Dual
Frequency Rating: 50/60 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200/20 kA
Material: Composite
Mounting Type: Holder
Rejection/Non-Rejection: Rejection
Response Time: 10 s
Series: FLSR
Terminal Type: Ferrule
Type: Current Limiting
Voltage Rating: 600 VAC/300 VDC

Features

  • Reliable interruption of all over currents up to 200 kA
  • Faster acting short circuit protection than any non-current limiting mechanical protective device
  • Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
  • 300 kA rms symmetrical self certified
  • Bronze caps
  • Industrial cylindrical cartridge fuses
