HUBBELL PVL-180L-5K-U-DB WALLPACK 72W LED 120-277V BRONZE
MFR Part #: PVL3-180L-5K-U-DB
SKU #: 1122776
Brand: Hubbell®
UPC: 785988313822

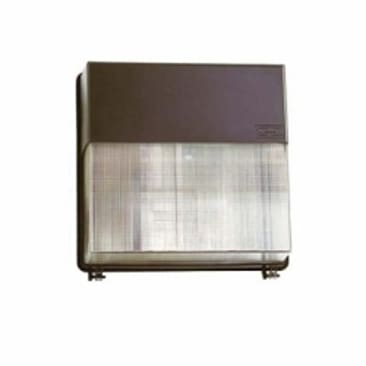

Hubbell® Perimaliter® III PVL3-180L-5K-U-DB Glass Refractor Wallpack, (1) LED Lamp, 120 to 277 VAC, Dark Bronze Powder Painted Housing
This product may be subject to ecological fees.
Lamp
For wall mount perimeter lighting
UL 1598 Listed Wet Locations | CSA Certified | DLC Qualified | RoHS Compliant
Product Details
Attributes
Features
Resources
Hubbell® Perimaliter® III Wallpack, Glass Refractor, Series: PVL3, 120 to 277 VAC, LED Lamp, 72 W Lamp, Medium Lamp Base, 1 Lamp, AL-HPF Ballast, Polycarbonate Lens, Surface Mounting, Die Cast Aluminum Housing Material, Dark Bronze Powder Painted Housing Finish, 15 in H x 14-7/8 in W x 8 in D Dimensions
Ballast Type:
AL-HPF
Country Of Origin:
China
Dimensions:
15 in H x 14-7/8 in W x 8 in D
Housing Finish:
Dark Bronze Powder Painted
Housing Material:
Die Cast Aluminum
Lamp Base Type:
Medium
Lamp Type:
LED
Lamp Wattage:
72 W
Lens Type:
Polycarbonate
Mounting Type:
Surface
Number of Lamps:
1
Series:
PVL3
Type:
Glass Refractor
Voltage Rating:
120 to 277 VAC
- The sharp prisms capable on the door allow spacings of 6 times typical mounting heights of 12 to 15 ft
- Energy-saving LED and HID systems up to 150 W
- One-piece polycarbonate lens, internally painted for lasting appearance, 6 to 1 spacing to mounting height ratio
- Two HubbellGard® fastners provide weathertight seal to housing
- Door hinges and is removable
- Housing is die cast aluminum for rugged mounting and heat dissipation
- 1/2 in feed-thru side hubs provided and top photocontrol hub for easy field installation
- Standard mount is over recessed wiring boxes
- Specular reflector, vertical lamp and refractor combine for efficient and uniform perimeter lighting
- Max wattage is 150PS or 150HPS
- Socket is porcelain medium base with spring-loaded center contact
- Use for wall mount perimeter lighting, provides safety, security and identity illumination, typical mounting is 12 to 15 ft with typical spacing of 60 to 75 ft
- Quad tap voltage
Product Details
Hubbell® Perimaliter® III Wallpack, Glass Refractor, Series: PVL3, 120 to 277 VAC, LED Lamp, 72 W Lamp, Medium Lamp Base, 1 Lamp, AL-HPF Ballast, Polycarbonate Lens, Surface Mounting, Die Cast Aluminum Housing Material, Dark Bronze Powder Painted Housing Finish, 15 in H x 14-7/8 in W x 8 in D Dimensions
Attributes
Ballast Type: AL-HPF
Country Of Origin: China
Dimensions: 15 in H x 14-7/8 in W x 8 in D
Housing Finish: Dark Bronze Powder Painted
Housing Material: Die Cast Aluminum
Lamp Base Type: Medium
Lamp Type: LED
Lamp Wattage: 72 W
Lens Type: Polycarbonate
Mounting Type: Surface
Number of Lamps: 1
Series: PVL3
Type: Glass Refractor
Voltage Rating: 120 to 277 VAC
Features
- The sharp prisms capable on the door allow spacings of 6 times typical mounting heights of 12 to 15 ft
- Energy-saving LED and HID systems up to 150 W
- One-piece polycarbonate lens, internally painted for lasting appearance, 6 to 1 spacing to mounting height ratio
- Two HubbellGard® fastners provide weathertight seal to housing
- Door hinges and is removable
- Housing is die cast aluminum for rugged mounting and heat dissipation
- 1/2 in feed-thru side hubs provided and top photocontrol hub for easy field installation
- Standard mount is over recessed wiring boxes
- Specular reflector, vertical lamp and refractor combine for efficient and uniform perimeter lighting
- Max wattage is 150PS or 150HPS
- Socket is porcelain medium base with spring-loaded center contact
- Use for wall mount perimeter lighting, provides safety, security and identity illumination, typical mounting is 12 to 15 ft with typical spacing of 60 to 75 ft
- Quad tap voltage
