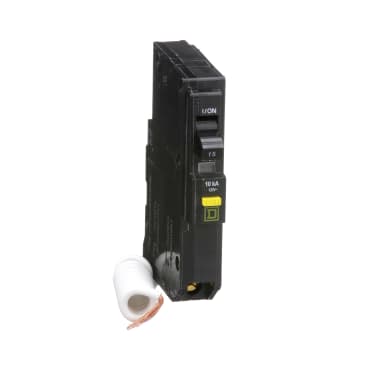

SQUARE D QO115GFI PUSH-IN 15 AMP GROUND FAULT
Product Details
Attributes
Features
Resources
Square D™, QO115GFI, Class A Ground Fault Miniature Circuit Breaker, 120 VAC, 15 A, 60 Hz Frequency, 10 kA Interrupt, QO/100A Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 0.75 in W x 2.91 in D Dimensions
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Qwik-Gard® GFCIs provide the same branch circuit protection as standard QO™ circuit breakers
- They are longer than standard QO™ circuit breakers and thus require more gutter space
- Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current
- For use with QO™ load centers, NQOD panel boards/interiors and Speed-D® switchboard distribution panels
- 14 to 8 AWG Cu, 12 to 8 AWG Al wire
- Ground fault protecting class A 6 mA
- K-Curve trip
