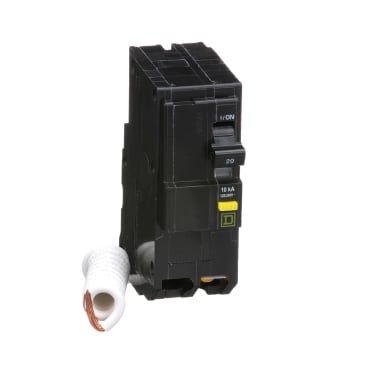

SQUARE D QO220GFI Image 1

SQUARE D QO220GFI PUSH-IN 2-20 AMP GROUND FAULT

MFR Part #: QO220GFI
SKU #: 0715162
Brand: Square D™
UPC: 785901562993
Square D™ QO220GFI Class A Ground Fault Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
For providing overload and short circuit protection designed to offer class A ground fault protection for people
Buy American Act Compliant | RoHS Compliant | UL 489 | CSA 22.2 #144 | PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov

Square D™, QO220GFI, Class A Ground Fault Miniature Circuit Breaker, 120/240 VAC, 20 A, 60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Product Details

Square D™, QO220GFI, Class A Ground Fault Miniature Circuit Breaker, 120/240 VAC, 20 A, 60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Attributes

Amperage Rating20 A
Connection TypePressure Plate
Country Of OriginMexico
Number of Poles2
Dimensions4.12 in H x 1.5 in W x 2.91 in D
FrameQO
Frequency Rating60 Hz
Interrupt Rating10 kA
Mounting TypePlug-On
Phase1
Temperature Rating40 deg C
Trip TypeThermal Magnetic
TypeClass A Ground Fault
Voltage Rating120/240 VAC
Wire Size14 to 10 AWG, 14 to 8 AWG

Features

  • Reliable and durable
  • Plug-on neutral design and shorter footprint for faster installs
  • Simple design and clear instructions for quick setup
  • Time-saving diagnostics with touch of a button
