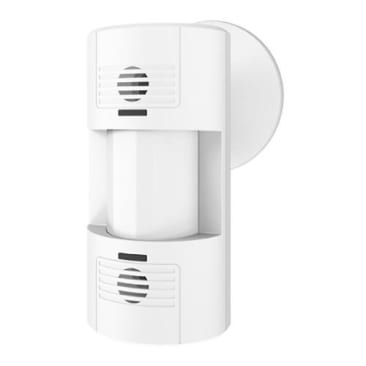

LUTRON LOS-WDT-WH Image 1

LUTRON LOS-WDT-WH OCC SENSOR MT DUAL TECH WALL MNT

MFR Part #: LOS-WDT-WH
SKU #: 1224746
Brand: Lutron®
UPC: 027557212410
Lutron® LOS-WDT-WH Occupancy Sensor, 20 to 24 VDC, Passive/Ultrasonic Infrared Sensor, 1600 sq-ft Coverage, 110 deg Viewing
Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems and Commercial
UL Listed | CSA/NEC/CEC Certified | CE Certified | RoHS Compliant

Lutron® Occupancy Sensor, Series: LOS-W, 20 to 24 VDC, 33 mA, Passive/Ultrasonic Infrared Sensor, 1600 sq-ft Coverage, 110 deg Viewing, 4 to 30 min Time Delay, LED Lamp, Wire Lead Connection, 20 to 24 VDC Control Output, 32 to 104 deg F, Plastic, White, 5.25 in H x 3.6 in W x 3.9 in D Dimensions

The LOS W series wall mount occupancy sensors are used in spaces with pendant fixtures, ceiling fans, or high ceilings. The passive infrared (PIR) version is well suited for major motion. The dual-technology versions detects minor motion via ultrasonic (US) technology to ensure optimal power savings and occupancy detection.

Product Details

Lutron® Occupancy Sensor, Series: LOS-W, 20 to 24 VDC, 33 mA, Passive/Ultrasonic Infrared Sensor, 1600 sq-ft Coverage, 110 deg Viewing, 4 to 30 min Time Delay, LED Lamp, Wire Lead Connection, 20 to 24 VDC Control Output, 32 to 104 deg F, Plastic, White, 5.25 in H x 3.6 in W x 3.9 in D Dimensions

The LOS W series wall mount occupancy sensors are used in spaces with pendant fixtures, ceiling fans, or high ceilings. The passive infrared (PIR) version is well suited for major motion. The dual-technology versions detects minor motion via ultrasonic (US) technology to ensure optimal power savings and occupancy detection.

Attributes

Amperage Rating: 33 mA
Color: White
Connection Type: Wire Lead
Control Output: 20 to 24 VDC
Coverage: 1600 sq-ft
Dimensions: 5.25 in H x 3.6 in W x 3.9 in D
Lamp Type: LED
Material: Plastic
Sensor Type: Passive/Ultrasonic Infrared
Series: LOS-W
Temperature Rating: 32 to 104 deg F
Time Delay: 4 to 30 min
Viewing Angle: 110 deg
Voltage Rating: 20 to 24 VDC

Features

  • Intelligent, continually adapting sensor
  • Ultrasonic (US) combined with Passive Infrared (PIR) sensing provide high sensitivity, high noise immunity, and excellent false tripping immunity
  • Suited for complex environments that are difficult to control with single-technology sensors
  • Use in rooms with pendant fixtures and storage areas
  • Flexible base mounting on wall or ceiling
  • Aim and lock - base mount permits fast alignment
