ABB ETQ2006SE10 2X6 QUIK-LOK ELECTROPLATED
MFR Part #: ETQ2006SE10
SKU #: 1164583
Brand: ABB
UPC: 626490989948

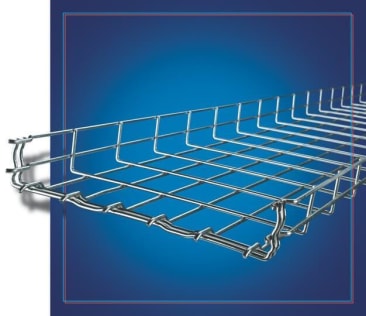

T&B® QuikLok® ETQ2006SE10 Straight Section U-Profile Basket Tray, 2 in D Loading, 10 ft L x 6 in W, Steel
Indoor Applications
CSA Certified | IEC Certified | UL Listed
Product Details
Attributes
Features
Resources
T&B® QuikLok® Basket Tray, Straight Section U-Profile, 2 in Loading Depth, Wire Mesh, 6 in Width, 10 ft Length, 2 in Overall Height, Steel, 0.153 in Wire, -49 to 302 deg F, Electro Galvanized
Bottom Type:Wire Mesh
Country Of Origin:US
Finish:Electro Galvanized
Loading Depth:2 in
Overall Height:2 in
Temperature Rating:-49 to 302 deg F
Type:Straight Section U-Profile
Wire Size:.153 in
- QuikLok® connection locks lengths of tray together in seconds with no hardware or tools required
- Low profile provides flexibility in confined spaces
- User-friendly installs in less time than conventional tray with no complex layouts, a minimum of tools and less wasted material
- Wide range of tray widths 4 to 24 in W accommodate as many or as few cables as required
- 2 x 6 in mesh size allows cables to be routed in or out without cutting wires
- Open design continuous airflow prevents overheating and the build-up of dust and contaminants
- Chamfered side edge minimizes risk of injury for installer and damage to cables during installation
- Long, straight runs requiring connection of many tray lengths
- Network cabling, wiring closets, fiber-to-desktop applications and more, this tray profile can be installed in suspended ceiling plenum areas and under computer room flooring
- It is often used to route cables on main runs in combination with the 2 in U-profile for branch runs
Product Details
T&B® QuikLok® Basket Tray, Straight Section U-Profile, 2 in Loading Depth, Wire Mesh, 6 in Width, 10 ft Length, 2 in Overall Height, Steel, 0.153 in Wire, -49 to 302 deg F, Electro Galvanized
Attributes
Bottom Type: Wire Mesh
Country Of Origin: US
Finish: Electro Galvanized
Loading Depth: 2 in
Overall Height: 2 in
Temperature Rating: -49 to 302 deg F
Type: Straight Section U-Profile
Wire Size: .153 in
Features
- QuikLok® connection locks lengths of tray together in seconds with no hardware or tools required
- Low profile provides flexibility in confined spaces
- User-friendly installs in less time than conventional tray with no complex layouts, a minimum of tools and less wasted material
- Wide range of tray widths 4 to 24 in W accommodate as many or as few cables as required
- 2 x 6 in mesh size allows cables to be routed in or out without cutting wires
- Open design continuous airflow prevents overheating and the build-up of dust and contaminants
- Chamfered side edge minimizes risk of injury for installer and damage to cables during installation
- Long, straight runs requiring connection of many tray lengths
- Network cabling, wiring closets, fiber-to-desktop applications and more, this tray profile can be installed in suspended ceiling plenum areas and under computer room flooring
- It is often used to route cables on main runs in combination with the 2 in U-profile for branch runs
