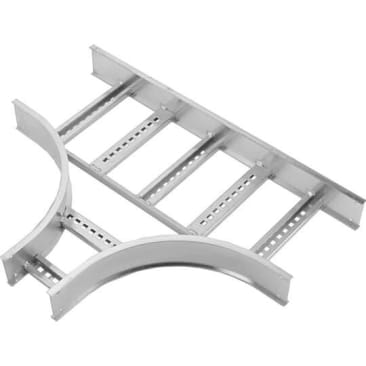

ABB AHF62412LRT24 AL.6IND 24IN-12IN RED. TEE 24INRAD
MFR Part #: AHF62412LRT24
SKU #: 1245362
Brand: ABB
UPC: 626490421752
Cable Tray AHF62412LRT24 H-Style Horizontal Reducing Tee, 24 x 12 in W Tray, 6 in H, 24 in Bend Radius, Ladder Bottom, 6063 Aluminum Alloy
Airports, Automotive Plants, Casinos, Food Processing, Hospitals, Manufacturing, Mining, Office Buildings, Paper Plants, Petrochemical Plants, Power Plants, Refineries, Schools and Stadium Applications
UL Listed | CSA Certified | NEC Article
Product Details
Attributes
Features
Resources
Cable Tray Reducing Tee, H-Style Horizontal, 24 x 12 in Tray Width, 6 in Height, 24 in Bend Radius, 39 in Length, 66 in Overall Width, Ladder Bottom, 6063 Aluminum Alloy
Bend Radius:24 in
Bottom Type:Ladder
Country Of Origin:Canada
Height:6 in
Length:39 in
Material:6063 Aluminum Alloy
Overall Width:66 in
Tray Width:24 x 12 in
Type:H-Style Horizontal
- Made or Assembled in Canada
- Snap-in splice plate connection
- Reverse position of every other rung for bottom or top mounting of cable ties
- Versatile continuous open slot rungs (strut profile)
- Extra wide rung design
- Four bolt connection
- 1.5 safety factor, all tray sections will support an additional 200 lb concentrated load on any portion of tray (side rail, rung) above and beyond published load class
- Extra wide aluminum rungs are welded to extruded aluminum I-beam side rails, every second rung is reversed to allow for easy top or bottom mounting of cable ties and clamps, all edges and welds are rounded and smooth to prevent cable damage
- Improved system rigidity
- Improved aesthetics and customer appeal
- Easy to install
- Easy to align straights and fittings
- Splice plate holds components together while hardware is inserted
- Premium design
