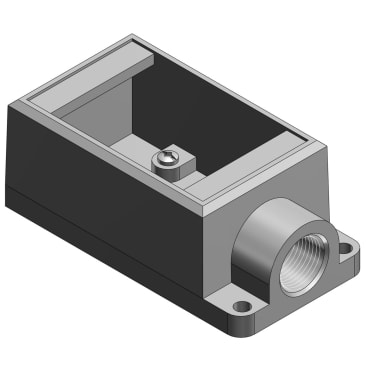

ABB FS1-TB 1/2 1GANG IRON SHALLOW FS BOX
MFR Part #: FS1-TB
SKU #: 1263498
Brand: ABB
UPC: 786210196961
T&B® Industrial Fitting FS1-TB Type FS Dead End Shallow Style Cast Device Box, Iron, 1 Gangs, 1 Outlets, 1 Knockouts
Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations Applications
CSA 001472 | UL File No. E2527 | UL File No. E2969
Product Details
Attributes
Features
Resources
T&B® Industrial Fitting Cast Device Box, Type FS Dead End Shallow Style, 1 Outlets, 1 Gangs, 1 Knockouts, 1/2 in Hub, NPT Hub, Lug Mounting, Iron, Zinc Plated, Gray, 2-3/4 in W x 2 in D x 4-9/32 in H Dimensions
Cable Entry:
Hub
Capacity:
23.55 cu-in
Color:
Gray
Country Of Origin:
China
Cover Material:
Iron
Depth:
4-2/7 in
Dimensions:
2-3/4 L x 2 W x 4-9/32 H in
Finish:
Zinc Plated
Hub Size:
1/2 in
Hub Style:
NPT
Length:
2-3/4 in
Material:
Iron
Mounting Type:
Lug
Number of Gangs:
1
Number of Knockouts:
1
Number of Outlets:
1
Shape:
Rectangular
Type:
Type FS Dead End Shallow Style
Width:
2 in
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Use blank bodies where special arrangements of conduit hubs or entrances are required
- All cover holes are #6-32 AWFG
- Mounting lugs are standard on all FS and FD boxes
- Accommodate wiring devices
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Connect conduit sections
- Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- 0.570 to 0.610 in Dia throat
- (1) end hub cable entry
- Sand cast Al alloy and sheet steel covers and neoprene gaskets
- Zinc plated with aluminum acrylic paint finish
- Class 30 iron alloy material
- For used to provide access to conductors for maintenance and future system changes
Product Details
T&B® Industrial Fitting Cast Device Box, Type FS Dead End Shallow Style, 1 Outlets, 1 Gangs, 1 Knockouts, 1/2 in Hub, NPT Hub, Lug Mounting, Iron, Zinc Plated, Gray, 2-3/4 in W x 2 in D x 4-9/32 in H Dimensions
Attributes
Cable Entry: Hub
Capacity: 23.55 cu-in
Color: Gray
Country Of Origin: China
Cover Material: Iron
Depth: 4-2/7 in
Dimensions: 2-3/4 L x 2 W x 4-9/32 H in
Finish: Zinc Plated
Hub Size: 1/2 in
Hub Style: NPT
Length: 2-3/4 in
Material: Iron
Mounting Type: Lug
Number of Gangs: 1
Number of Knockouts: 1
Number of Outlets: 1
Shape: Rectangular
Type: Type FS Dead End Shallow Style
Width: 2 in
Features
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Use blank bodies where special arrangements of conduit hubs or entrances are required
- All cover holes are #6-32 AWFG
- Mounting lugs are standard on all FS and FD boxes
- Accommodate wiring devices
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Connect conduit sections
- Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- 0.570 to 0.610 in Dia throat
- (1) end hub cable entry
- Sand cast Al alloy and sheet steel covers and neoprene gaskets
- Zinc plated with aluminum acrylic paint finish
- Class 30 iron alloy material
- For used to provide access to conductors for maintenance and future system changes
