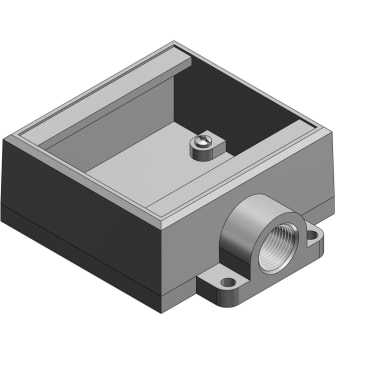

ABB FS22-TB 3/4 2GANG IRON SHALLOW FS BOX
MFR Part #: FS22-TB
SKU #: 1263501
Brand: ABB
UPC: 786210197135
T&B® FS22-TB Type FS Dead End Shallow Style Cast Device Box, Iron Alloy, 2 Gangs, 1 Outlets, 1 Knockouts, 4-5/8 in W x 2 in D x 4-9/32 in H
For protecting wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
CSA 001472 | UL File No. E2527/E2969
Product Details
Attributes
Features
Resources
T&B® Cast Device Box, Type FS Dead End Shallow Style, 1 Outlets, 2 Gangs, 1 Knockouts, 3/4 in Hub, NPT Hub, Hub Cable Entry Size, Lug Mount, Iron Alloy, Zinc Plated, Gray, 4-5/8 in W x 2 in D x 4-9/32 in H
Cable Entry:
Hub
Cable Entry Size:
Hub
Capacity:
39.6 cu-in
Color:
Gray
Country Of Origin:
US
Cover Material:
Iron Alloy
Depth:
4-2/7 in
Dimensions:
4-5/8 L x 2 W x 4-9/32 H in
Finish:
Zinc Plated
Hub Style:
NPT
Length:
4-5/8 in
Shape:
Rectangular
Width:
2 in
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Use blank bodies where special arrangements of conduit hubs or entrances are required
- All cover holes are #6-32 AWFG
- Mounting lugs are standard on all FS and FD boxes
- Accommodate wiring devices
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Connect conduit sections
- Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- 0.755 to 0.810 in Dia throat
- (1) end hub cable entry
- Sand cast Al alloy and sheet steel covers and neoprene gaskets
- Zinc plated with aluminum acrylic paint finish
- Class 30 iron alloy material
- For used to provide access to conductors for maintenance and future system changes
Product Details
T&B® Cast Device Box, Type FS Dead End Shallow Style, 1 Outlets, 2 Gangs, 1 Knockouts, 3/4 in Hub, NPT Hub, Hub Cable Entry Size, Lug Mount, Iron Alloy, Zinc Plated, Gray, 4-5/8 in W x 2 in D x 4-9/32 in H
Attributes
Cable Entry: Hub
Cable Entry Size: Hub
Capacity: 39.6 cu-in
Color: Gray
Country Of Origin: US
Cover Material: Iron Alloy
Depth: 4-2/7 in
Dimensions: 4-5/8 L x 2 W x 4-9/32 H in
Finish: Zinc Plated
Hub Style: NPT
Length: 4-5/8 in
Shape: Rectangular
Width: 2 in
Features
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Use blank bodies where special arrangements of conduit hubs or entrances are required
- All cover holes are #6-32 AWFG
- Mounting lugs are standard on all FS and FD boxes
- Accommodate wiring devices
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Connect conduit sections
- Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- 0.755 to 0.810 in Dia throat
- (1) end hub cable entry
- Sand cast Al alloy and sheet steel covers and neoprene gaskets
- Zinc plated with aluminum acrylic paint finish
- Class 30 iron alloy material
- For used to provide access to conductors for maintenance and future system changes
