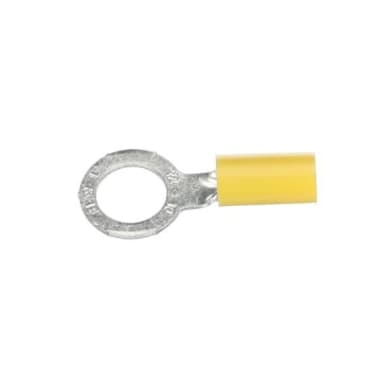

ABB 10RC-38 Image 1

ABB 10RC-38 3/8 INSULATED VIN RING TERMINAL 12-10 YLW

MFR Part #: 10RC-38
SKU #: 1264159
Brand: ABB
UPC: 786210800509
Sta-Kon® 10RC-38 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.29 in L, Brazed Seam Barrel, Copper, Yellow
For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
UL Listed | UL 94 V-0 Flammability Rated | UL File No. E9809 | CSA Certified

Sta-Kon® Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Product Details

Sta-Kon® Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Attributes

Barrel TypeBrazed Seam
ColorYellow
Conductor Size12 to 10 AWG
Country Of OriginUS
FinishTiN Coated
Length1.29 in
MaterialCopper
SeriesRC Series
Specifications0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation
Stud Size3/8 in
Temperature Rating105 deg C
Tongue Size0.5 in W x 0.04 in THK
Tongue TypeRing
TypeInsulated
Voltage Rating600 VAC

Features

  • Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
  • Brazed seam barrel that is serrated to obtain high pullout value
  • Made of copper and has electro-tin plating for corrosion-resistance
  • 50 pieces/pack
