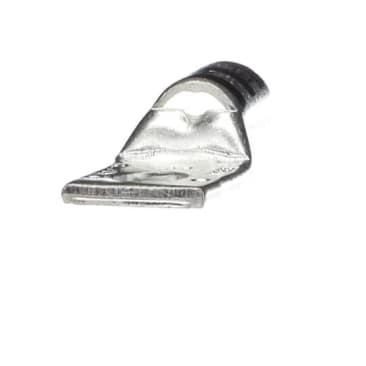

ABB 54110 BLACK 1-HOLE LUG #2/0 SHORT BARREL

MFR Part #: 54110
SKU #: 1005272
Brand: ABB
UPC: 786210541105
Color-Keyed® 54110 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 2/0 AWG Copper Conductor, Die Code: 45, 3/8 in Stud, Copper
For providing a high degree of reliability in electrical wiring
CSA Certified | UL File No. E9809

Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 35 kV, 3/8 in Stud, Straight Tongue, 0.93 in L x 0.83 in W x 0.13 in THK Tongue, 1.93 in Overall Length, Standard Barrel, 0.57 in Dia Barrel, Specifications: Tin Plated, 0.406 in Mounting Hole, Copper, Black

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Product Details

Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 35 kV, 3/8 in Stud, Straight Tongue, 0.93 in L x 0.83 in W x 0.13 in THK Tongue, 1.93 in Overall Length, Standard Barrel, 0.57 in Dia Barrel, Specifications: Tin Plated, 0.406 in Mounting Hole, Copper, Black

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Attributes

Barrel Size: 0.57 in Dia
Barrel Type: Standard
Color: Black
Conductor Size: 2/0 AWG
Conductor Type: Copper
Country Of Origin: Mexico
Die Code: 45
Material: Copper
Mounting Hole Size: .406 in
Overall Length: 1.93 in
Series: 54100
Specifications: Tin Plated
Stud Size: 3/8 in
Tongue Size: 0.93 in L x 0.83 in W x 0.13 in THK
Tongue Type: Straight
Type: 1-Hole Non-Insulated
Voltage Rating: 35 kV

Features

  • Peep hole
  • High conductivity wrought copper construction
  • Tin plated finish

Resources

Instruction/Installation Manual
Specification Sheet
