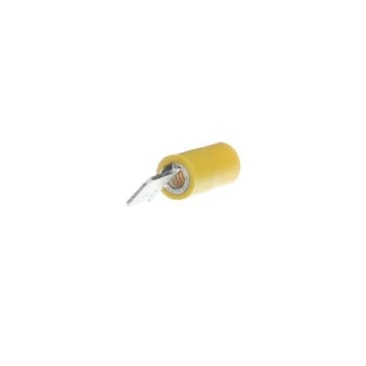

ABB 10RC-250T Image 1

ABB 10RC-250T INS VINYL MALE-250 TAB 12-10 YEL

MFR Part #: 10RC-250T
SKU #: 1256050
Brand: ABB
UPC: 786210839349
Sta-Kon® 10RC-250T 250 Insulated Male Tab, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass/Copper, Yellow
CSA Certified | UL94 V-0 Flammability Rating | UL File No. E66716

Sta-Kon® Male Tab, Insulated, Series: 250, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.04 in THK Stock, 1/4 in Dia Maximum Vinyl Insulation, 105 deg C, Brass/Copper, Yellow, Tin Electro-Plated, 1.08 in L

T&B® developed the first tool-applied solderless terminals and connectors more than 70 years ago in response to industry awareness of the need for better performance of electrical systems.

Product Details

Sta-Kon® Male Tab, Insulated, Series: 250, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.04 in THK Stock, 1/4 in Dia Maximum Vinyl Insulation, 105 deg C, Brass/Copper, Yellow, Tin Electro-Plated, 1.08 in L

T&B® developed the first tool-applied solderless terminals and connectors more than 70 years ago in response to industry awareness of the need for better performance of electrical systems.

Attributes

Barrel TypeBrazed Seam
ColorYellow
Conductor Size12 to 10 AWG
Country Of OriginUS
Dimensions1.08 in L
FinishElectro Plated Tin
MaterialBrass
Specifications1/4 in Maximum Insulation, 0.04 in Stock
Tab Size0.25 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
TypeInsulated
Voltage Rating600 VAC
Series250

Features

  • Brazed seam serrated barrel provides maximum tensile strength
