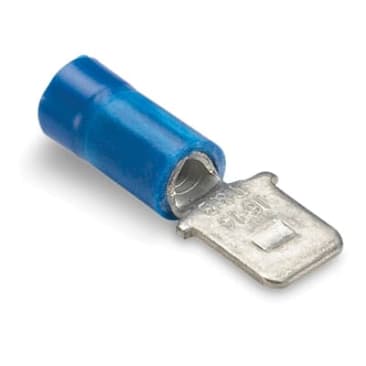

ABB 14RB-250T Image 1

ABB 14RB-250T INS VINYL MALE-250 TAB 16-14 BLUE

MFR Part #: 14RB-250T
SKU #: 1256055
Brand: ABB
UPC: 786210800783
Sta-Kon® 14RB-250T 250 Insulated Male Tab, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass/Copper, Blue
CSA Certified | UL94 V-0 Flammability Rating | UL File No. E66716

Sta-Kon® Male Tab, Insulated, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.03 in THK Stock, 0.2 in Dia Maximum Vinyl Insulation, 105 deg C, Brass/Copper, Blue, Tin Electro-Plated, 0.95 in L

T&B® developed the first tool-applied solderless terminals and connectors more than 70 years ago in response to industry awareness of the need for better performance of electrical systems.

Product Details

Sta-Kon® Male Tab, Insulated, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.03 in THK Stock, 0.2 in Dia Maximum Vinyl Insulation, 105 deg C, Brass/Copper, Blue, Tin Electro-Plated, 0.95 in L

T&B® developed the first tool-applied solderless terminals and connectors more than 70 years ago in response to industry awareness of the need for better performance of electrical systems.

Attributes

Barrel TypeBrazed Seam
ColorBlue
Conductor Size16 to 14 AWG
Country Of OriginUS
Dimensions0.95 in L
FinishElectro Plated Tin
MaterialBrass
Specifications0.2 in Maximum Insulation, 0.03 in Stock
Tab Size0.25 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
TypeInsulated
Voltage Rating600 VAC
Series250

Features

  • Brazed seam serrated barrel provides maximum tensile strength
