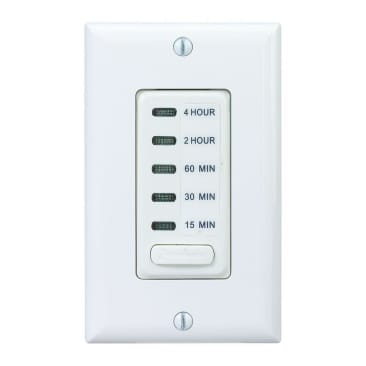

INTERMATIC EI215W ELECTRONIC IN-WALL TIMER 15/30/60/2/4 WH
MFR Part #: EI215W
SKU #: 1115919
Brand: Intermatic®
UPC: 078275108509
Intermatic® EI215W EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 15/30/60 min to 2/4 hr Setting, 120 VAC, 1/2 hp, 1NO/SPST Contact, 1 Poles
1 Year
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR, Bathroom Fans, Spas, Hot Tubs, Storage Closets and Garage Lights Applications
cULus Listed | California TITLE 24 Compliant | HVACR
Product Details
Attributes
Features
Resources
Intermatic® Electronic Countdown Timer, Auto Shut-Off In-Wall, Series: EI200, Operation Mode: 4 hr, 120 VAC, 15 A, 1/2 hp, 1 Pole, 1NO/SPST Contact Form, 15/30/60 min to 2/4 hr Time Setting, 32 to 122 deg F, Wall Mounting, 2.79 in H x 1.75 in W x 1.44 in D Dimensions
Amperage Rating:
15 A
Contact Form:
1NO/SPST
Country Of Origin:
China
Dimensions:
2.79 in H x 1.75 in W x 1.44 in D
Horsepower:
1/2 hp
Mounting Type:
Wall
Number of Poles:
1
Operation Mode:
4 hr
Rewards:
AD Rewards
Series:
EI200
Temperature Rating:
32 to 122 deg F
Time Setting:
15/30/60 min to 2/4 hr
Type:
Auto Shut-Off In-Wall
Voltage Rating:
120 VAC
- No programming required
- Single-button time selection, with some models having a HOLD mode, for continuous ON operation
- Replaces single-pole switches in a variety of applications
- Incandescent/fluorescent/CFL/LED compatible
- Requires neutral connection
Product Details
Intermatic® Electronic Countdown Timer, Auto Shut-Off In-Wall, Series: EI200, Operation Mode: 4 hr, 120 VAC, 15 A, 1/2 hp, 1 Pole, 1NO/SPST Contact Form, 15/30/60 min to 2/4 hr Time Setting, 32 to 122 deg F, Wall Mounting, 2.79 in H x 1.75 in W x 1.44 in D Dimensions
Attributes
Amperage Rating: 15 A
Contact Form: 1NO/SPST
Country Of Origin: China
Dimensions: 2.79 in H x 1.75 in W x 1.44 in D
Horsepower: 1/2 hp
Mounting Type: Wall
Number of Poles: 1
Operation Mode: 4 hr
Rewards: AD Rewards
Series: EI200
Temperature Rating: 32 to 122 deg F
Time Setting: 15/30/60 min to 2/4 hr
Type: Auto Shut-Off In-Wall
Voltage Rating: 120 VAC
Features
- No programming required
- Single-button time selection, with some models having a HOLD mode, for continuous ON operation
- Replaces single-pole switches in a variety of applications
- Incandescent/fluorescent/CFL/LED compatible
- Requires neutral connection
