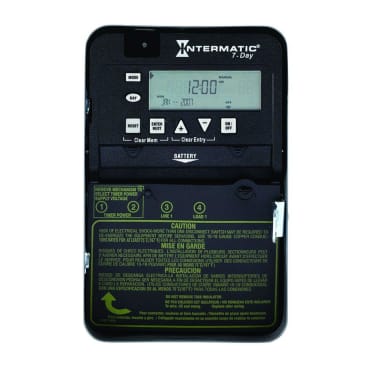

INTERMATIC ET1705C 7-DAY 30 AMP SPST ELECTRONIC TIMESWITCH

MFR Part #: ET1705C
SKU #: 1055626
Brand: Intermatic®
UPC: 078275109841
Intermatic® ET1705C ET1700 Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles
1 Year
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control and Various Other Electrical Loads, Indoor, HVACR and Industrial Applications
cCSAus Certified | California TITLE 24 Compliant | HVACR | Title CA 20 Listed

Intermatic® Electronic Timer Switch, Series: ET1700, Operation Mode: 7 days, 120/277 VAC, 30 A, 1, 2 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 6 days 23 hr 59 min Time Setting, AAA Alkaline Battery, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 200 mm H x 130.2 mm W x 87.3 mm D Dimensions

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.

Product Details

Intermatic® Electronic Timer Switch, Series: ET1700, Operation Mode: 7 days, 120/277 VAC, 30 A, 1, 2 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 6 days 23 hr 59 min Time Setting, AAA Alkaline Battery, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 200 mm H x 130.2 mm W x 87.3 mm D Dimensions

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.

Attributes

Amperage Rating30 A
Battery TypeAAA Alkaline
Contact Form1NO/SPST
Country Of OriginChina
Dimensions200 mm H x 130.2 mm W x 87.3 mm D
Electrical ConnectionsTeeter/Wire Lead
Enclosure TypeNEMA 1
Horsepower1, 2 hp
Mounting TypeWall
Number of Poles1
Operation Mode7 days
RewardsAD Rewards
SeriesET1700
Temperature Rating-40 to 155 deg F
Time Setting1 min to 6 days 23 hr 59 min
Voltage Rating120/277 VAC

Features

  • Selector switch to determine input voltage between 120-277 VAC
  • To-the-minute accuracy
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Astronomic models enable dusk-to-dawn scheduling
