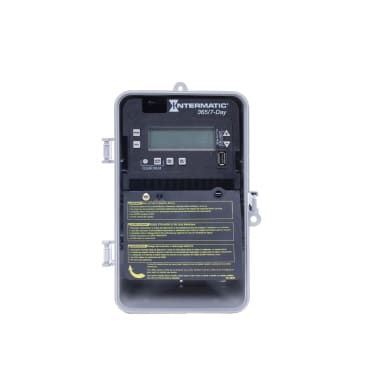

INTERMATIC ET2725C Image 1
AD Rewards

INTERMATIC ET2725C 365/7-DAY 2XSPST ELEC CONTROL

MFR Part #: ET2725C
SKU #: 1133037
Brand: Intermatic®
UPC: 078275148147
Intermatic® ET2725C ET2700 Electronic Controller Timer, 1 min to 6 days 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles
Interior Lighting, Exterior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor and Various Other Electrical Loads Applications
UL Rating | Meet Title 20/24 ComplianCE Approved

Intermatic® Electronic Controller Timer, Series: ET2700, Operation Mode: 7 days, 120/277 VAC, 30 A, 1, 2 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 6 days 23 hr 59 min Time Setting, 2 s Pulse, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 200 mm H x 130.2 mm W x 87.3 mm D Dimensions

The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Product Details

Intermatic® Electronic Controller Timer, Series: ET2700, Operation Mode: 7 days, 120/277 VAC, 30 A, 1, 2 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 6 days 23 hr 59 min Time Setting, 2 s Pulse, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 200 mm H x 130.2 mm W x 87.3 mm D Dimensions

The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Attributes

Amperage Rating30 A
Contact Form1NO/SPST
Country Of OriginMexico
Dimensions200 mm H x 130.2 mm W x 87.3 mm D
Electrical ConnectionsTeeter/Wire Lead
Enclosure TypeNEMA 1
Horsepower1, 2 hp
Mounting TypeWall
Number of Poles1
Operation Mode7 days
Pulse Duration2 s
RewardsAD Rewards
SeriesET2700
Temperature Rating-40 to 155 deg F
Time Setting1 min to 6 days 23 hr 59 min
Voltage Rating120/277 VAC

Features

  • 100 hr supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2 hr overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy
