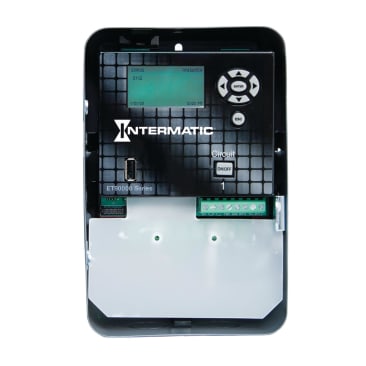

INTERMATIC ET90115C 365-DAY 1-CCT TIME CLOCK
Product Details
Attributes
Features
Resources
Intermatic® Electronic Timer Switch, Astronomic, Series: ET90000, Operation Mode: 365 days, 120/277 VAC, 20 A, 1, 2 hp, 1 Pole, 1NO-1NC, SPDT Contact Form, 1 sec to 365 days Time Setting, 4000 Pulse Events, 1 s to 23 hr 59 min Pulse, Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 120 deg F, Wall Mounting, 7.8 in H x 5.1 in W x 3 in D
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
- Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
- Over 2,000 events plus holiday schedules
- Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
- 30 A rated contacts
- 100 hr supercapacitor eliminates the need for batteries
- USB connection for uploading, downloading and transferring programs
Product Details
Intermatic® Electronic Timer Switch, Astronomic, Series: ET90000, Operation Mode: 365 days, 120/277 VAC, 20 A, 1, 2 hp, 1 Pole, 1NO-1NC, SPDT Contact Form, 1 sec to 365 days Time Setting, 4000 Pulse Events, 1 s to 23 hr 59 min Pulse, Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 120 deg F, Wall Mounting, 7.8 in H x 5.1 in W x 3 in D
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
Attributes
Features
- Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
- Over 2,000 events plus holiday schedules
- Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
- 30 A rated contacts
- 100 hr supercapacitor eliminates the need for batteries
- USB connection for uploading, downloading and transferring programs
