SATCO S11752 Image 1

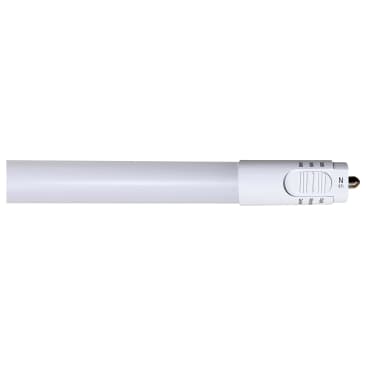

SATCO S11752 96 38W 120-277V CCT SELECTABLE SINGLE PIN BASE T8 LED PET SHATTERPROOF COATED WHITE FINISH

MFR Part #: S11752
SKU #: 1269323
Brand: SATCO®
UPC: 045923117527
SATCO® S11752 LED Lamp, 38 W, 150 W Incandescent Equivalent, Fa8 Single Pin Lamp Base Linear Lamp, T8 Shape, 5400, 5500, 5300 Lumens
5 Years Limited
This product may be subject to ecological fees.
Each master case contains a 10 pack of item 80-984 (LED T8 Support Clip.)
cRUus | ETLus | cULus | RoHS | FCC | NSF | SDS

SATCO®, S11752, Lamp, LED, 38T8/LED/96-CCT/BP/FA8 Designation, 38 W Wattage, 150 W Incandescent Equivalent, 120 to 277 V, Linear Lamp, Fa8 Single Pin Lamp Base, T8 Shape, 5400, 5500, 5300 Lumens, 50000 hr Average Life, Cool White/Daylight, 83 CRI, 4000/5000/6500 K Color Temperature, Type B Bypass Ballast, Enclosed Fixture, Spread Beam, 180 deg Beam, 96 in Dimensions

SATCO NUVO's LED T8 lamps with Fa8 or R17d bases are some of our most versatile lamps. Featuring ColorQuick selectable color technology, these lamps allow for easy selection of 4000K/5000K/6500K color temperatures at installation. The P.E.T. coated lamp provides shatterproof protection to ensure safe illumination anywhere including food service applications.

Product Details

SATCO®, S11752, Lamp, LED, 38T8/LED/96-CCT/BP/FA8 Designation, 38 W Wattage, 150 W Incandescent Equivalent, 120 to 277 V, Linear Lamp, Fa8 Single Pin Lamp Base, T8 Shape, 5400, 5500, 5300 Lumens, 50000 hr Average Life, Cool White/Daylight, 83 CRI, 4000/5000/6500 K Color Temperature, Type B Bypass Ballast, Enclosed Fixture, Spread Beam, 180 deg Beam, 96 in Dimensions

SATCO NUVO's LED T8 lamps with Fa8 or R17d bases are some of our most versatile lamps. Featuring ColorQuick selectable color technology, these lamps allow for easy selection of 4000K/5000K/6500K color temperatures at installation. The P.E.T. coated lamp provides shatterproof protection to ensure safe illumination anywhere including food service applications.

Attributes

Ballast Type: Type B Bypass
Color Temperature: 4000/5000/6500 K
Country Of Origin: China
Lamp Type: Linear
Lumens: 5400, 5500, 5300 Lumens
Wattage: 38 W
Average Life: 50000 hr
Beam Angle: 180 deg
Beam Type: Spread
Color: Cool White/Daylight
Color Rendering Index (CRI): 83
Designation: 38T8/LED/96-CCT/BP/FA8
Dimensions: 96 in
Fixture Type: Enclosed
Incandescent Equivalent: 150 W
Lamp Base Type: Fa8 Single Pin
Lamp Finish: White
Shape: T8
Type: LED
Voltage Rating: 120 to 277 V

Features

  • Glass/Plastic Material
  • PET Coated Shatter-Proof
  • Direct replacement for fluorescent T8 or T12 lamps
  • Compatible with S8002 Emergency Driver
  • CCT Selectable

Resources

Instruction/Installation Manual
SDS
Specification Sheet
