SATCO S11764 Image 1

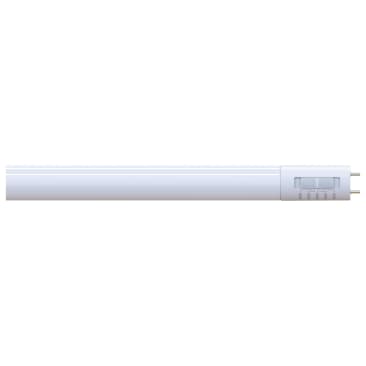

SATCO S11764 9W ADJUSTABLE CCT 2FT T8 TYBE B LED BALLAST BYBASS WITH G13 BASE

MFR Part #: S11764
SKU #: 1286360
Brand: SATCO®
UPC: 045923117640
SATCO® S11764 Tubular Light, 9 W, 40 W Incandescent Equivalent, G13 Medium Bi-Pin Lamp Base Linear LED Lamp, T8 Shape, 1150, 1150, 1250, 1250, 1250 Lumens
5 Years
This product may be subject to ecological fees.
For Indoor Lighting
cULus Classified/cULus Certified | DLC Approved | NSF Approved | CA Compliant | RoHS Compliant | FCC Compliant

SATCO®, S11764, Tubular Light, 9 W Wattage, 40 W Incandescent Equivalent, 120 to 277 V AC, Linear LED Lamp, G13 Medium Bi-Pin Lamp Base, T8 Shape, 1150, 1150, 1250, 1250, 1250 Lumens, 50000 hr Average Life, Warm White/Neutral White/Cool White/Natural Light/Day Light, 80 CRI, 3000/3500/4000/5000/6500 K Color Temperature, Type B Bypass Ballast, Enclosed Fixture, Spread Beam, 210 deg Beam, 1 in Dia x 23.17 in L Dimensions

SATCO NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures with CCT selection at installation. Available in two, three, and four-foot lengths for immediate energy savings in a variety of commercial and industrial applications.

Product Details

SATCO®, S11764, Tubular Light, 9 W Wattage, 40 W Incandescent Equivalent, 120 to 277 V AC, Linear LED Lamp, G13 Medium Bi-Pin Lamp Base, T8 Shape, 1150, 1150, 1250, 1250, 1250 Lumens, 50000 hr Average Life, Warm White/Neutral White/Cool White/Natural Light/Day Light, 80 CRI, 3000/3500/4000/5000/6500 K Color Temperature, Type B Bypass Ballast, Enclosed Fixture, Spread Beam, 210 deg Beam, 1 in Dia x 23.17 in L Dimensions

SATCO NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures with CCT selection at installation. Available in two, three, and four-foot lengths for immediate energy savings in a variety of commercial and industrial applications.

Attributes

Ballast TypeType B Bypass
Color Temperature3000/3500/4000/5000/6500 K
Lamp TypeLinear LED
Lumens1150, 1150, 1250, 1250, 1250 Lumens
Wattage9 W
Average Life50000 hr
Beam Angle210 deg
Beam TypeSpread
ColorWarm White/Neutral White/Cool White/Natural Light/Day Light
Color Rendering Index (CRI)80
Dimensions1 in Dia x 23.17 in L
Fixture TypeEnclosed
Incandescent Equivalent40 W
Lamp Base TypeG13 Medium Bi-Pin
Lamp FinishWhite
ShapeT8
Voltage Rating120 to 277 V AC
