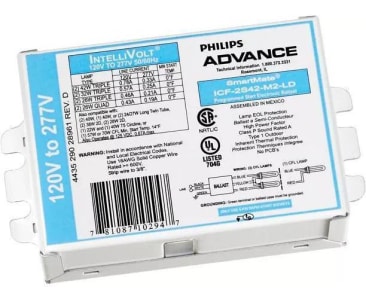

PHILIPS 190470 Image 1

PHILIPS 190470 SMARTMATE CFL BALLAST 13W 4-PIN 120-277V

MFR Part #: 190470
SKU #: 1116885
Brand: Signify | Advance
UPC: 781087104101
Advance IntelliVolt® SmartMate 190470 Electronic Ballast, CFL/Series Lamp, 13 W Lamp, 120 to 277 VAC, Programmed, 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
CEC Certified | CSA Certified | FCC Non-Consumer Approved | NOM Certified | UL Listed

Advance IntelliVolt® SmartMate Ballast, Electronic, CFL/Series Lamp, 13 W Lamp, 29 W Wattage, 120 to 277 VAC, 0.11 to 0.25 A, 50/60 Hz Frequency, Programmed Start, 0 deg F Minimum Starting, Total Harmonic Distortion: 0.1 %, Power Factor: 0.98, 2 Lamps, G24q Lamp Base, Ballast Factor: 1, 75 deg C, Metal, 4.2 in L x 2.4 in W x 0.98 in H Dimensions

Offering maximum versatility, the Philips Advance family of SmartMate ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple-tube, circline, 2D and long twin-tube lamps. SmartMate ballasts' energy efficient design, compact and lightweight housing and user-friendly features make these ballasts an ideal choice for fixture manufacturers, retrofitters and MRO replacement.

Product Details

Advance IntelliVolt® SmartMate Ballast, Electronic, CFL/Series Lamp, 13 W Lamp, 29 W Wattage, 120 to 277 VAC, 0.11 to 0.25 A, 50/60 Hz Frequency, Programmed Start, 0 deg F Minimum Starting, Total Harmonic Distortion: 0.1 %, Power Factor: 0.98, 2 Lamps, G24q Lamp Base, Ballast Factor: 1, 75 deg C, Metal, 4.2 in L x 2.4 in W x 0.98 in H Dimensions

Offering maximum versatility, the Philips Advance family of SmartMate ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple-tube, circline, 2D and long twin-tube lamps. SmartMate ballasts' energy efficient design, compact and lightweight housing and user-friendly features make these ballasts an ideal choice for fixture manufacturers, retrofitters and MRO replacement.

Attributes

Country Of Origin: Mexico
Lamp Type: CFL/Series
Lamp Wattage: 13 W
Number of Lamps: 2
Start Type: Programmed
Voltage Rating: 120 to 277 VAC
Amperage Rating: 0.11 to 0.25 A
Ballast Factor: 1
Dimensions: 4.2 in L x 2.4 in W x 0.98 in H
Frequency Rating: 50/60 Hz
Lamp Base Type: G24q
Material: Metal
Minimum Starting Temperature: 0 deg F
Power Factor: .98
Temperature Range: 75 deg C
Total Harmonic Distortion: .1 %
Type: Electronic
Wattage: 29 W

Features

  • Bottom mounting studs with single entry color coded connectors

Resources

Specification Sheet
