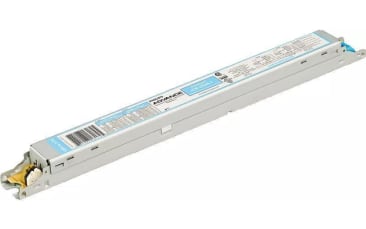

PHILIPS ICN2S5490CT35M Image 1

PHILIPS 501676 CENTIUM HIGH EFFICIENT T5 FLUORESCENT BALLAST F54T5/HO 120-277V

MFR Part #: ICN2S5490CT35M
SKU #: 1117213
Brand: Signify | Advance
UPC: 781087131824
Advance Centium® ICN2S5490CT35M Electronic Fluorescent Ballast, T5HO Lamp, 54 W Lamp, 120 to 277 VAC, Programmed, 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
CSA Certified | UL Listed

Advance Centium® Electronic Fluorescent Ballast, T5HO Lamp, 54 W Lamp, 120/117 W Wattage, 120 to 277 VAC, 0.43 to 1 A, 50/60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, No Dimmable, 2 Lamps, Thermal Protection: Class P, Ballast Factor: 1, 90 deg C, Metal, 14.17 in L x 1.18 in W x 1.06 in H Dimensions

No matter what the conditions require, operating at a variety of line voltages between 120 to 480 VAC, whether located in high ambient temperature environments (requiring a 90 deg C rating) or not, our family of Philips Advance Centium® ballasts are ideal for a wide variety of applications.

Product Details

Advance Centium® Electronic Fluorescent Ballast, T5HO Lamp, 54 W Lamp, 120/117 W Wattage, 120 to 277 VAC, 0.43 to 1 A, 50/60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, No Dimmable, 2 Lamps, Thermal Protection: Class P, Ballast Factor: 1, 90 deg C, Metal, 14.17 in L x 1.18 in W x 1.06 in H Dimensions

No matter what the conditions require, operating at a variety of line voltages between 120 to 480 VAC, whether located in high ambient temperature environments (requiring a 90 deg C rating) or not, our family of Philips Advance Centium® ballasts are ideal for a wide variety of applications.

Attributes

Country Of OriginMexico
Lamp TypeT5HO
Lamp Wattage54 W
Number of Lamps2
Start TypeProgrammed
Voltage Rating120 to 277 VAC
Amperage Rating0.43 to 1 A
Ballast Factor1
Dimensions14.17 in L x 1.18 in W x 1.06 in H
DimmableNo
Frequency Rating50/60 Hz
MaterialMetal
Power Factor.98
Temperature Range90 deg C
Thermal ProtectionClass P
Total Harmonic Distortion10 %
Wattage120/117 W

Features

  • High power factor
