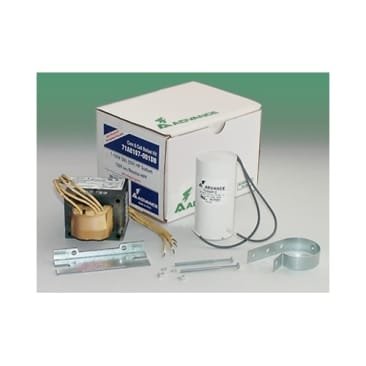

PHILIPS 177014 Image 1

PHILIPS 177014 LOW PRESS SOD C&C BALLAST 35/55W L70/71 QUAD KIT

MFR Part #: 177014
SKU #: 1116850
Brand: Signify | Advance
UPC: 781087025567
Advance 177014 Core/Coil Magnetic HX-HPF HID Ballast, Low Pressure Sodium Lamp, 35/55 W Lamp, 120/208/240/277 VAC, Probe, 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
BAA Compliant | CSA Certified | RoHS Compliant | UL Listed | UL Recognized

Advance HID Ballast, Core/Coil Magnetic HX-HPF, Low Pressure Sodium Lamp, 35/55 W Lamp, 80 W, 120/208/240/277 VAC, 0.32/0.36/0.42/0.73 A, 60 Hz, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, Ballast Factor: 1, ANSI L70/71 Ballast Grade, 3.95 in L x 3.5 in W x 2.8 in H

Product Details

Advance HID Ballast, Core/Coil Magnetic HX-HPF, Low Pressure Sodium Lamp, 35/55 W Lamp, 80 W, 120/208/240/277 VAC, 0.32/0.36/0.42/0.73 A, 60 Hz, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, Ballast Factor: 1, ANSI L70/71 Ballast Grade, 3.95 in L x 3.5 in W x 2.8 in H

Attributes

Amperage Rating: 0.32/0.36/0.42/0.73 A
Ballast Factor: 1
Ballast Grade: ANSI L70/71
Country Of Origin: Mexico
Dimensions: 3.95 in L x 3.5 in W x 2.8 in H
Dimmable: No
Frequency Rating: 60 Hz
Lamp Type: Low Pressure Sodium
Lamp Wattage: 35/55 W
Minimum Starting Temperature: -20 deg F
Number of Lamps: 1
Power Factor: .9
Start Type: Probe
Thermal Protection: Class P
Type: Core/Coil Magnetic HX-HPF
Voltage Rating: 120/208/240/277 V AC
Wattage: 80 W

Features

  • The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
  • The core and coil also forms the nucleus of Philips® Advance five other ballast configurations
  • Ballast replacement kit with dry film capacitor
