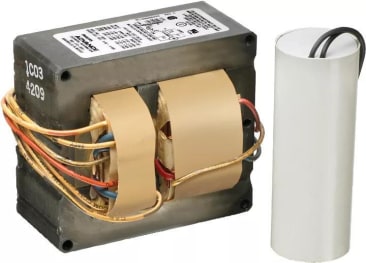

PHILIPS 190389 HIGH PRESS SOD CORE & COIL BALLAST 150W S55 QUAD KIT

MFR Part #: 190389
SKU #: 1116882
Brand: Signify | Advance
UPC: 781087817216
Advance 190389 Magnetic Core and Coil/HX-HPF HID Ballast, 150 W Lamp, 120/208/240/277 V AC, Pulse, 1 Ballast Factor
This product may be subject to ecological fees.
For lighting luminaire component and outdoor applications
BAA Compliant | CSA Certified | UL Listed | UL Recognized

Advance HID Ballast, Magnetic Core and Coil/HX-HPF, 150 W Lamp, 190 W, 120/208/240/277 V AC, 1.3/1.4/1.6/2.8 A, 60 Hz, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, Ballast Factor: 1, ANSI S55 Ballast Grade, 4 in L x 4.2 in W x 2.9 in H

Product Details

Advance HID Ballast, Magnetic Core and Coil/HX-HPF, 150 W Lamp, 190 W, 120/208/240/277 V AC, 1.3/1.4/1.6/2.8 A, 60 Hz, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, Ballast Factor: 1, ANSI S55 Ballast Grade, 4 in L x 4.2 in W x 2.9 in H

Attributes

Ballast Factor: 1
Country Of Origin: Mexico
Dimensions: 4 in L x 4.2 in W x 2.9 in H
Dimmable: No
Frequency Rating: 60 Hz
Lamp Wattage: 150 W
Minimum Starting Temperature: -40 deg F
Number of Lamps: 1
Power Factor: .9
Start Type: Pulse
Thermal Protection: Class P
Voltage Rating: 120/208/240/277 V AC

Features

  • The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
  • The core and coil also forms the nucleus of Philips® Advance five other ballast configurations
  • Core and coil ballast (no capacitor)
  • Integral igniter
  • Vacuum pressure impregnated with a silica filled polyester varnish

Resources

Specification Sheet
