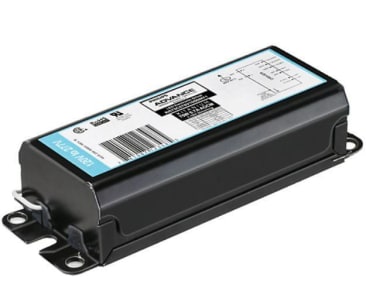

PHILIPS 108001 LEDINTA0024V20DLOM 48W 2A 24V 0-10V INTELLIV

MFR Part #: 108001
SKU #: 1116516
Brand: Signify | Advance
UPC: 781087086704
Advance Xitanium IntelliVolt® 108001 Constant Voltage Dimmable Electronic Fixed LED Driver, 120 to 277 V AC Input, 24 VAC Output, 48 W, 9-1/2 in L x 2.35 in W
This product may be subject to ecological fees.
Area, Roadway, Parking Garage, Gas Station Canopy, Wallpack, Floodlight and Outdoor Applications
cURus File No. E220165 | CSA 7310_S-000 3426-32 | CE Certified | ENEC Certified | UL Listed for Damp and Dry Locations

Advance Xitanium IntelliVolt® LED Driver, Constant Voltage Dimmable Electronic Fixed, 120 to 277 V AC Input, 24 VAC Output, 48 W, 2 A, Power Factor: 0.9, 9-1/2 in Length, 2.35 in Width, 1.47 in Height, 85 deg C

Product Details

Advance Xitanium IntelliVolt® LED Driver, Constant Voltage Dimmable Electronic Fixed, 120 to 277 V AC Input, 24 VAC Output, 48 W, 2 A, Power Factor: 0.9, 9-1/2 in Length, 2.35 in Width, 1.47 in Height, 85 deg C

Attributes

Amperage Rating: 2 A
Country Of Origin: Mexico
Height: 1.47 in
Input Voltage: 120 to 277 V AC
Length: 9-1/2 in
Output Voltage: 24 V AC
Power Factor: .9
Power Rating: 48 W
Temperature Rating: 85 deg C
Type: Constant Voltage Dimmable Electronic Fixed
Width: 2.35 in

Features

  • Surge protection
  • High efficiency for maximum payback
  • High reliability for low maintenance costs
  • 0 to 10 VDC dimming non-isolated in F-can

Resources

Catalog
Specification Sheet
