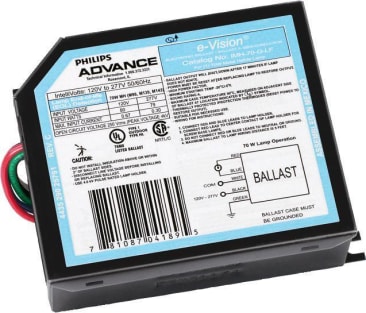

PHILIPS 120971 E-VISION ELECTRONIC HID BALLAST 39W M130 120-277
Product Details
Attributes
Features
Resources
Advance e-Vision Electronic Ballast, Low Wattage, 39 W Lamp, 43 W Wattage, 120 to 277 V AC, 0.17 A, 50/60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Total Harmonic Distortion: 0.15, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M130 Ballast Grade, 90 deg C, Surface Mounting, Metal, 3.9 in L x 3 in W x 1.2 in H Dimensions
Low frequency electronic ballasts are recommended by lamp manufacturers to drive the latest generation of ceramic, low wattage metal halide lamps. These ceramic lamps have superior color rendition and can potentially maintain that color over the life of the lamps when properly operated with electronic ballasts. Since color is dependent on proper lamp wattage, the electronic ballast must be able to maintain lamp wattage precisely at its rated point throughout the rated average life of the lamp. Low frequency electronic HID ballasts, such as the Philips® Advance e-Vision line, constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps' superior color properties. This makes ceramic metal halide operated by e-Vision ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting. Operational improvements are gained as greater efficiency and cooler running electronic ballasts lead to energy savings. In addition, ballasts run quieter, weigh less and have smaller footprints.
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips® Advance five other ballast configurations
- Ballast replacement kit with dry film capacitor
Product Details
Advance e-Vision Electronic Ballast, Low Wattage, 39 W Lamp, 43 W Wattage, 120 to 277 V AC, 0.17 A, 50/60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Total Harmonic Distortion: 0.15, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M130 Ballast Grade, 90 deg C, Surface Mounting, Metal, 3.9 in L x 3 in W x 1.2 in H Dimensions
Low frequency electronic ballasts are recommended by lamp manufacturers to drive the latest generation of ceramic, low wattage metal halide lamps. These ceramic lamps have superior color rendition and can potentially maintain that color over the life of the lamps when properly operated with electronic ballasts. Since color is dependent on proper lamp wattage, the electronic ballast must be able to maintain lamp wattage precisely at its rated point throughout the rated average life of the lamp. Low frequency electronic HID ballasts, such as the Philips® Advance e-Vision line, constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps' superior color properties. This makes ceramic metal halide operated by e-Vision ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting. Operational improvements are gained as greater efficiency and cooler running electronic ballasts lead to energy savings. In addition, ballasts run quieter, weigh less and have smaller footprints.
Attributes
Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips® Advance five other ballast configurations
- Ballast replacement kit with dry film capacitor
