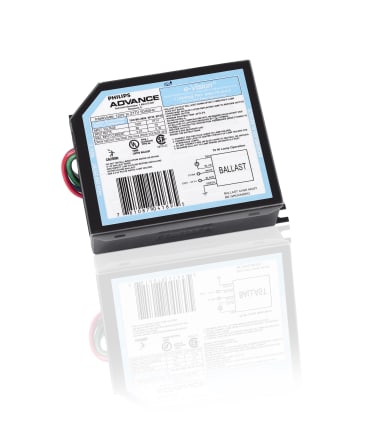

PHILIPS 121046 E-VISION HID BALLAST 70W M139/M143 120-277

MFR Part #: 121046
SKU #: 1116802
Brand: Signify | Advance
UPC: 781087041895
Advance e-Vision® IntelliVolt® 121046 Electronic Fixed Light Output HID Ballast, 70 W Lamp, 120 to 277 V AC, 1 Ballast Factor
This product may be subject to ecological fees.
Low Wattage HID Lamp, Retail Display, Accent Lighting in Both Track, Downlight, Lobbies, Atriums, Landscape, Facade Lighting and Outdoor Applications
BAA Compliant | CSA Certified | FCC Non-Consumer Approved | NoM Certified | UL Listed

Advance e-Vision® IntelliVolt® HID Ballast, Electronic Fixed Light Output, 70 W Lamp, 76 to 79 W Wattage, 120 to 277 V AC, 0.28 to 0.66 A, 50/60 Hz Frequency, -4 deg F Minimum Starting, Total Harmonic Distortion: 0.15, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M139/143 Ballast Grade, 90 deg C, Metal, 3.9 in L x 3 in W x 1.2 in H Dimensions

Low frequency electronic HID ballasts such as the Philips® Advance e-Vision® line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps' superior color properties. This makes ceramic metal halide operated by e-Vision® ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting.

Product Details

Advance e-Vision® IntelliVolt® HID Ballast, Electronic Fixed Light Output, 70 W Lamp, 76 to 79 W Wattage, 120 to 277 V AC, 0.28 to 0.66 A, 50/60 Hz Frequency, -4 deg F Minimum Starting, Total Harmonic Distortion: 0.15, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M139/143 Ballast Grade, 90 deg C, Metal, 3.9 in L x 3 in W x 1.2 in H Dimensions

Low frequency electronic HID ballasts such as the Philips® Advance e-Vision® line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps' superior color properties. This makes ceramic metal halide operated by e-Vision® ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting.

Attributes

Amperage Rating: 0.28 to 0.66 A
Ballast Factor: 1
Ballast Grade: ANSI M139/143
Country Of Origin: Mexico
Dimensions: 3.9 in L x 3 in W x 1.2 in H
Frequency Rating: 50/60 Hz
Lamp Wattage: 70 W
Material: Metal
Minimum Starting Temperature: -4 deg F
Number of Lamps: 1
Power Factor: .9
Temperature Range: 90 deg C
Total Harmonic Distortion: .15
Type: Electronic Fixed Light Output
Voltage Rating: 120 to 277 V AC
Wattage: 76 to 79 W

Features

  • The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
  • The core and coil also forms the nucleus of Philips® Advance five other ballast configurations
  • Core and coil ballast with dry film capacitor
  • Vacuum pressure impregnated with a silica filled polyester varnish

Resources

Specification Sheet
