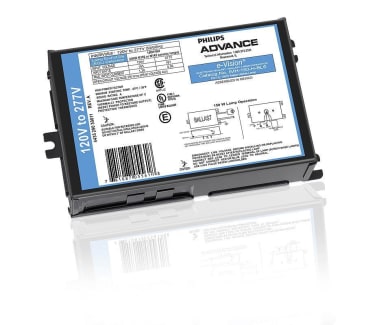

PHILIPS 121251 E-VISION HID BALLAST 150W M102/142 120-277V
Product Details
Attributes
Features
Resources
Advance e-Vision® IntelliVolt® HID Ballast, Electronic Fixed Light Output, 150 W Lamp, 161 to 165 W Wattage, 120 to 277 V AC, 0.6 to 1.4 A, 50/60 Hz Frequency, -4 deg F Minimum Starting, Total Harmonic Distortion: 0.15, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M102/142 Ballast Grade, 85 deg C, Metal, 6.4 in L x 3.7 in W x 1.5 in H Dimensions
Low frequency electronic HID ballasts such as the Philips® Advance e-Vision® line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps' superior color properties. This makes ceramic metal halide operated by e-Vision® ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting.
- Constant lamp wattage for optimal color control and maximum performance
- Significant energy savings can be achieved when compared to incandescent or magnetic alternatives
- IntelliVolt® operates on either 120 or 277 VAC or any voltage in between 50/60 Hz
- Smaller and lighter weight than magnetic HID F-can ballasts
- Compact footprints provides greater design flexibility
- Reduced input watts compared to magnetic systems, energy savings, lower cost of ownership
- Low frequency lamp operation prevents acoustic resonance in the lamp arc tube
- Square wave output waveform helps maximize lamp life
- Lamp EOL detection shuts down system at lamp end of life, enhanced safeguard
- Thermally protected, internally fused and output short circuit protected
- Lamp wattage will change less than 0.5% with a +/-10% change in-line voltage
- Metallic enclosure provides enhanced capability for high ambient temperatures by transferring heat away from sensitive internal components
- Leads (side exit) with mounting feet
Product Details
Advance e-Vision® IntelliVolt® HID Ballast, Electronic Fixed Light Output, 150 W Lamp, 161 to 165 W Wattage, 120 to 277 V AC, 0.6 to 1.4 A, 50/60 Hz Frequency, -4 deg F Minimum Starting, Total Harmonic Distortion: 0.15, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M102/142 Ballast Grade, 85 deg C, Metal, 6.4 in L x 3.7 in W x 1.5 in H Dimensions
Low frequency electronic HID ballasts such as the Philips® Advance e-Vision® line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps' superior color properties. This makes ceramic metal halide operated by e-Vision® ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting.
Attributes
Features
- Constant lamp wattage for optimal color control and maximum performance
- Significant energy savings can be achieved when compared to incandescent or magnetic alternatives
- IntelliVolt® operates on either 120 or 277 VAC or any voltage in between 50/60 Hz
- Smaller and lighter weight than magnetic HID F-can ballasts
- Compact footprints provides greater design flexibility
- Reduced input watts compared to magnetic systems, energy savings, lower cost of ownership
- Low frequency lamp operation prevents acoustic resonance in the lamp arc tube
- Square wave output waveform helps maximize lamp life
- Lamp EOL detection shuts down system at lamp end of life, enhanced safeguard
- Thermally protected, internally fused and output short circuit protected
- Lamp wattage will change less than 0.5% with a +/-10% change in-line voltage
- Metallic enclosure provides enhanced capability for high ambient temperatures by transferring heat away from sensitive internal components
- Leads (side exit) with mounting feet
