EIKO 12537 Image 1
EIKO 12537 Image 2
content loaded
EIKO 12537 Image 1

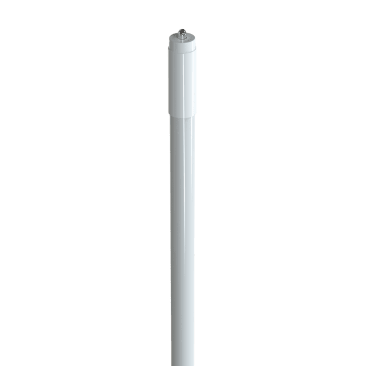

EIKO 12537 DOUBLE ENDED 8FT 40W 80CRI 5000K 5500LM 120-277V

MFR Part #: 12537
SKU #: 1256944
Brand: EIKO®
UPC: 31293125378
EIKO® 12537 Type B LED Bulb, 40 W, Linear, Double Ended, 5000 K, 5500 Lumens, 210 deg Beam
5 Year Limited
This product may be subject to ecological fees.
For admin, class, conference, meeting rooms, libraries, reception, lobby, restrooms, hallways, stairwells, dining, cafeteria, cold storage, multi-residential (dorms, apartments), Dr. offices, waiting, patient rooms, gyms and athletic facilities, production areas, shipping, receiving, warehouses, exterior perimeter, parking garage, parking lot, pathway, athletic fields, retail and storefront
cULus Listed | DLC Listed | NSF Certified | RoHS Compliant

EIKO® Type B LED Bulb, 40 W Wattage, 5500 Lumens, Linear Bulb Shape, Bulb Shape Code: T8, 5000 K Color Temperature, Double Ended Base, Bulb Base Code: FA8, 120 to 277 VAC, 80+ CRI, Bulb Designation: 40WT8/96/850-FA8-G9D, 50000 hr Average Life, 210 deg Beam, Fluorescent Wattage Equivalent: 59 W, 1 in Diameter, 8 ft Length, Additional Information: Ballast Bypass, -4 to 113 deg F Operating Temperature

Product Details

EIKO® Type B LED Bulb, 40 W Wattage, 5500 Lumens, Linear Bulb Shape, Bulb Shape Code: T8, 5000 K Color Temperature, Double Ended Base, Bulb Base Code: FA8, 120 to 277 VAC, 80+ CRI, Bulb Designation: 40WT8/96/850-FA8-G9D, 50000 hr Average Life, 210 deg Beam, Fluorescent Wattage Equivalent: 59 W, 1 in Diameter, 8 ft Length, Additional Information: Ballast Bypass, -4 to 113 deg F Operating Temperature

Attributes

Additional Information: Ballast Bypass, -4 to 113 deg F Operating Temperature
Average Life: 50000 hr
Beam Angle: 210 deg
Bulb Base: Double Ended
Bulb Base Code: FA8
Bulb Designation: 40WT8/96/850-FA8-G9D
Bulb Shape: Linear
Bulb Shape Code: T8
Color Rendering Index (CRI): 80+
Color Temperature: 5000 K
Diameter: 1 in
Fluorescent Wattage Equivalent: 59 W
Length: 8 ft
Lumens: 5500 Lumens
Voltage Rating: 120 to 277 VAC
Wattage: 40 W

Features

  • Solid state replacement for high output 8 ft T8 and T12 fluorescent lamps
  • Direct replacement of single pin LED slimline with HO equivalent lumen output
  • Double ended single contact base same as T8 and T12 lamps
  • Simple installation, bypass ballast, connect line voltage to single pin sockets
  • Frosted lens for uniform diffuse appearance
  • No ballast or external driver required
  • Instant on with no warm up like fluorescents
  • Integral 120 to 277 V drivers provide easy installation
  • Does not operate on emergency backup

Resources

Instruction/Installation Manual
Specification Sheet
