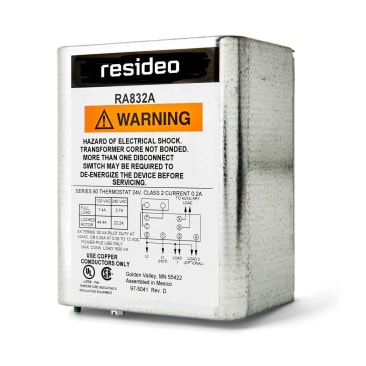

HONEYWELL RA832A1082/U CONTROLLER 24V 120/60HZ COIL
MFR Part #: RA832A1082/U
SKU #: 0482192
Brand: Honeywell
UPC: 085267081894
Resideo RA832A1082/U Switching Relay, 240 VAC, 0.4 A Coil, DPST, 24 VAC Coil, Import
Integral Transformer and Enclosure
CSA #LR1620 | UL E4436 | Guide #XAPX for USA and Canada
Product Details
Attributes
Features
Resources
Resideo Switching Relay, Series: RA832A, 240 VAC, 0.4 A Coil, 5 W, 50/60 Hz, 24 VAC Coil, DPST, 2 Pole, 115 deg F at 60 Hz/105 deg F at 50 Hz, 5-1/4 in H x 4-1/4 in W x 2-5/16 in D, Import
Provide intermediate switching of a line voltage device from a low voltage controller.
Amperage Rating:
0.4 A Coil
Coil Voltage:
24 VAC
Contact Form:
DPST
Country Of Origin:
Mexico
Dimensions:
5-1/4 in H x 4-1/4 in W x 2-5/16 in D
Domestic/Import:
Import
Frequency Rating:
50/60 Hz
Number of Poles:
2
Power Rating:
5 W
Series:
RA832A
Temperature Rating:
115 deg F at 60 Hz/105 deg F at 50 Hz
Voltage Rating:
240 VAC
- (1) Relay pole is designed for low voltage or millivoltage (PowerPile®) auxiliary load
- 2-wire control circuit electrical connections
- Contact ratings: 7.4 A at 120 VAC AFL, 3.7 A at 240 VAC AFL, 44.4 A at 120 VAC ALR, 22.2 A at 240 VAC ALR
- 50 VA at 24 V secondary pilot duty ratings
- -300 mA min at 750 mV contacts ratings
Product Details
Resideo Switching Relay, Series: RA832A, 240 VAC, 0.4 A Coil, 5 W, 50/60 Hz, 24 VAC Coil, DPST, 2 Pole, 115 deg F at 60 Hz/105 deg F at 50 Hz, 5-1/4 in H x 4-1/4 in W x 2-5/16 in D, Import
Provide intermediate switching of a line voltage device from a low voltage controller.
Attributes
Amperage Rating: 0.4 A Coil
Coil Voltage: 24 VAC
Contact Form: DPST
Country Of Origin: Mexico
Dimensions: 5-1/4 in H x 4-1/4 in W x 2-5/16 in D
Domestic/Import: Import
Frequency Rating: 50/60 Hz
Number of Poles: 2
Power Rating: 5 W
Series: RA832A
Temperature Rating: 115 deg F at 60 Hz/105 deg F at 50 Hz
Voltage Rating: 240 VAC
Features
- (1) Relay pole is designed for low voltage or millivoltage (PowerPile®) auxiliary load
- 2-wire control circuit electrical connections
- Contact ratings: 7.4 A at 120 VAC AFL, 3.7 A at 240 VAC AFL, 44.4 A at 120 VAC ALR, 22.2 A at 240 VAC ALR
- 50 VA at 24 V secondary pilot duty ratings
- -300 mA min at 750 mV contacts ratings
