HONEYWELL VP525C1032/U PNEUMATIC RADIATOR
MFR Part #: VP525C1032/U
SKU #: 1207307
Brand: Honeywell
UPC: 085267150095

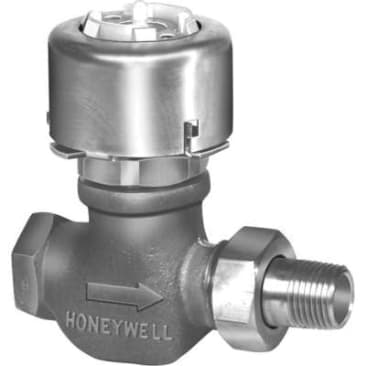

Honeywell VP525C1032/U Pneumatic Radiator Valve, 3/4 in Nominal, MNPT Union, Configuration: NO
Product Details
Attributes
Features
Resources
Honeywell Pneumatic Radiator Valve, 3/4 in Nominal, MNPT Union Connection, NO, 150 lb/sq-in Body, 30 lb/sq-in Safe Air Pressure, 2 Positions, 40-240 deg F, -230 deg F Safe Actuator Diaphragm, 4-7/8 in H x 3-3/4 in W
Dimensions:4-7/8 in H x 3-3/4 in W
Nominal Size:3/4 in
Pressure Rating:150 lb/sq-in Body, 30 lb/sq-in Safe Air Pressure
Temperature Rating:40-240 deg F, -230 deg F Safe Actuator Diaphragm
Configuration:NO
Connection Type:MNPT Union
Number of Positions:2
- Normally-open, single-seated pneumatic radiator valve, with straight through or angle body construction provides proportional control of two-pipe, hot water or steam systems
- Easily replaceable actuator assembly for convenience of service
- Compact size for installation where space is limited
- Can be repacked without shutting down system
- Replacement for VP525A1192 and VP525A1200
- 5 to 95% RH operating humidity range
- 3-10 lb/sq-in spring range
- Push on for 1/4 in OD plastic tubing air connections
- Proportional normally open valve action
- Water, steam controlled fluid
- 42 lb/sq-in differential at 20 lb/sq-in close-off ratings at branch line pressure
Product Details
Honeywell Pneumatic Radiator Valve, 3/4 in Nominal, MNPT Union Connection, NO, 150 lb/sq-in Body, 30 lb/sq-in Safe Air Pressure, 2 Positions, 40-240 deg F, -230 deg F Safe Actuator Diaphragm, 4-7/8 in H x 3-3/4 in W
Attributes
Dimensions: 4-7/8 in H x 3-3/4 in W
Nominal Size: 3/4 in
Pressure Rating: 150 lb/sq-in Body, 30 lb/sq-in Safe Air Pressure
Temperature Rating: 40-240 deg F, -230 deg F Safe Actuator Diaphragm
Configuration: NO
Connection Type: MNPT Union
Number of Positions: 2
Features
- Normally-open, single-seated pneumatic radiator valve, with straight through or angle body construction provides proportional control of two-pipe, hot water or steam systems
- Easily replaceable actuator assembly for convenience of service
- Compact size for installation where space is limited
- Can be repacked without shutting down system
- Replacement for VP525A1192 and VP525A1200
- 5 to 95% RH operating humidity range
- 3-10 lb/sq-in spring range
- Push on for 1/4 in OD plastic tubing air connections
- Proportional normally open valve action
- Water, steam controlled fluid
- 42 lb/sq-in differential at 20 lb/sq-in close-off ratings at branch line pressure
