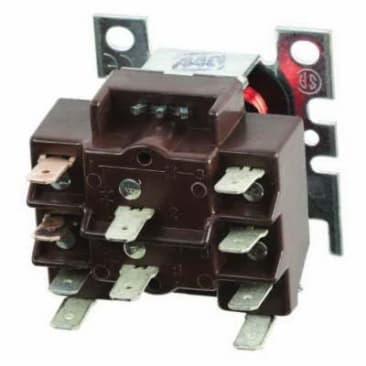

HONEYWELL R8222B1067/U RELAY

MFR Part #: R8222B1067
SKU #: 0482093
Brand: Honeywell
UPC: 085267000406
Honeywell R8222B1067 Tradeline Low Voltage General Purpose Relay, 1 Form C SPDT Contact, 24 VAC V Coil
Double Quick-Connect Coil Terminals
Refrigeration, Air Conditioning Equipment, Appliances, Vending Machines and Power Pole Applications
UL E59779 | CSA LR35066

Honeywell General Purpose Relay, Low Voltage, Series: Tradeline, 3/4 hp Power, 50/60 Hz Frequency, 24 VAC Coil, 1 Form C SPDT Contact Form, 3 A at 480 V AC, 6 A at 208/240/277 V AC, 12 A at 120 V AC Contact, Surface Mounting, Quick-Connect Terminal, -29 to 68 deg C, 48 mm H x 55 mm W x 60 mm D Dimensions

Product Details

Honeywell General Purpose Relay, Low Voltage, Series: Tradeline, 3/4 hp Power, 50/60 Hz Frequency, 24 VAC Coil, 1 Form C SPDT Contact Form, 3 A at 480 V AC, 6 A at 208/240/277 V AC, 12 A at 120 V AC Contact, Surface Mounting, Quick-Connect Terminal, -29 to 68 deg C, 48 mm H x 55 mm W x 60 mm D Dimensions

Attributes

Coil Voltage: 24 V AC
Contact Form: 1 Form C SPDT
Contact Rating: 3 A at 480 V AC, 6 A at 208/240/277 V AC, 12 A at 120 V AC
Country Of Origin: Mexico
Dimensions: 48 mm H x 55 mm W x 60 mm D
Frequency Rating: 50/60 Hz
Mounting Type: Surface
Power Rating: 3/4 hp
Series: Tradeline
Temperature Rating: -29 to 68 deg C
Terminal Type: Quick-Connect
Type: Low Voltage

Features

  • Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
  • Open coil assures cooler operation
  • Laminated magnet construction for higher efficiency
  • Base designed for easy replacement of competitive relays
  • Plug compatible with Steveco 90-340 and Mars 90340
  • 1/4 in quick-connect terminals
  • 18 A at 480 Vac, 35 A at 208/240/277 Vac, 60 A at 120 Vac locked rotor contact rating
  • 10 A at 480 VAC, 20.8 A at 120/208/240/277 VAC resistive contact rating
  • 3 VA at 24/120/480 Vac minimum , 25 VA at 24 Vac, 125 VA at 120/240/480 Vac maximum pilot duty rating
  • 3 A at 277 Vac (0.75 power factor) resistive
  • (Normally open contacts Only) 0.25 A at 0.25 to 12 vdc powerpile pilot duty rating

Resources

Specification Sheet
