HONEYWELL V5011N1057 3/4-IN BODY
Product Details
Attributes
Features
Resources

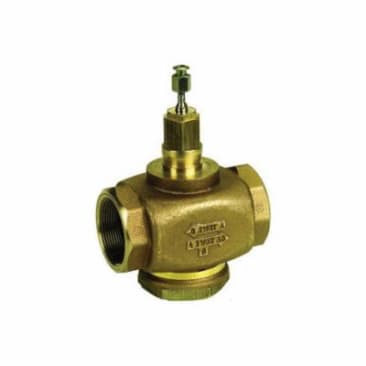

Honeywell Globe Valve, 2-Way, Series: V5011N, 3/4 in Nominal, FNPT, 217 psi at 248 deg F Safe Operating, 150 lb, 36 to 248 deg F Water Ambient, 3-1/4 in Inlet to Outlet Length, Red Brass Body, Stainless Steel Trim, PTFE Packing, Domestic
The V5011N is a two-way threaded globe valve for control of steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. These valves are used in two-position and modulating control systems. The valve is not suitable for combustible gas service.
- High pressure steam models with stainless steel trim
- Spring-loaded, self-adjusting packing
- Stainless steel stem prevents corrosion
- Valve designs provide equal percentage characteristics of flow for close control of water, and linear characteristic of flow for close control of steam or chilled water
- Valves utilize direct mounting, electric or pneumatic linear valve actuators, Q5001 linkage with Modutrol Motor or Q5020/Q5022A linkages with direct coupled rotary actuators to operate the valve
- Not suitable for combustible gases
- Used with: Q5001/Modutrol IV Motor; MP953; Q5020/DCA; ML6984/ML7984; ML6420,21A,25; ML7420/ML7421A/ML7425 actuators
- Bonnet size: 1-3/8 in
- For quiet water service 20 psid max differential pressure ratings (close-off)
- Capacity: 7.3 Cv
- Valve action: Stem down to close
- Controlled fluid: Chilled or hot water with up to 50% glycol, not for use with steam or fuels
- Equal percentage flow characteristic
- Static pressure rating: Meets ANSI 150 standard
- Stem travel: 3/4 in
- Leakage:eat - 0.05% of Cv
- Actuation must be purchased separately
Product Details
Honeywell Globe Valve, 2-Way, Series: V5011N, 3/4 in Nominal, FNPT, 217 psi at 248 deg F Safe Operating, 150 lb, 36 to 248 deg F Water Ambient, 3-1/4 in Inlet to Outlet Length, Red Brass Body, Stainless Steel Trim, PTFE Packing, Domestic
The V5011N is a two-way threaded globe valve for control of steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. These valves are used in two-position and modulating control systems. The valve is not suitable for combustible gas service.
Attributes
Features
- High pressure steam models with stainless steel trim
- Spring-loaded, self-adjusting packing
- Stainless steel stem prevents corrosion
- Valve designs provide equal percentage characteristics of flow for close control of water, and linear characteristic of flow for close control of steam or chilled water
- Valves utilize direct mounting, electric or pneumatic linear valve actuators, Q5001 linkage with Modutrol Motor or Q5020/Q5022A linkages with direct coupled rotary actuators to operate the valve
- Not suitable for combustible gases
- Used with: Q5001/Modutrol IV Motor; MP953; Q5020/DCA; ML6984/ML7984; ML6420,21A,25; ML7420/ML7421A/ML7425 actuators
- Bonnet size: 1-3/8 in
- For quiet water service 20 psid max differential pressure ratings (close-off)
- Capacity: 7.3 Cv
- Valve action: Stem down to close
- Controlled fluid: Chilled or hot water with up to 50% glycol, not for use with steam or fuels
- Equal percentage flow characteristic
- Static pressure rating: Meets ANSI 150 standard
- Stem travel: 3/4 in
- Leakage:eat - 0.05% of Cv
- Actuation must be purchased separately
