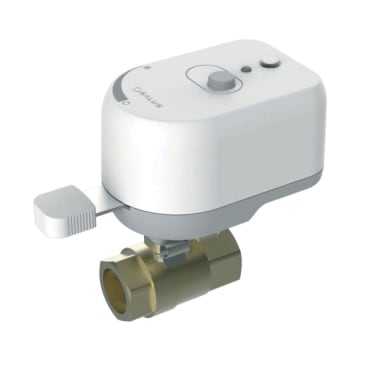

SALUS SC904ZB Image 1

SALUS SC904ZB INLINE SHUTOFF VALVE

MFR Part #: SC904ZB
SKU #: 1243554
Brand: Salus
UPC: 817989023087
SALUS® SC904ZB Inline Shut-Off Valve, 3/4 in, FNPT, Bronze
FCC Approved | IAPMO Listed | NSF/ANSI 61G/372

SALUS® Inline Shut-Off Valve, 3/4 in Nominal, FNPT Connection, 300 psi, Water Media, 120 V, 60 Hz, IP54 Enclosure, Bronze Body, 32 to 122 deg F, 5.7 in L x 2.9 in W x 4.8 in H, Additional Information: 13 ft Power Cable

The SALUS® water leak detection and supply shut-off system is an easy to install solution to prevent water leak catastrophe.

Product Details

SALUS® Inline Shut-Off Valve, 3/4 in Nominal, FNPT Connection, 300 psi, Water Media, 120 V, 60 Hz, IP54 Enclosure, Bronze Body, 32 to 122 deg F, 5.7 in L x 2.9 in W x 4.8 in H, Additional Information: 13 ft Power Cable

The SALUS® water leak detection and supply shut-off system is an easy to install solution to prevent water leak catastrophe.

Attributes

Additional Information: 13 ft Power Cable
Body Material: Bronze
Connection Type: FNPT
Dimensions: 5.7 in L x 2.9 in W x 4.8 in H
Enclosure Type: IP54
Frequency Rating: 60 Hz
Media: Water
Nominal Size: 3/4 in
Pressure Rating: 300 psi
Temperature Rating: 32 to 122 deg F
Voltage Rating: 120 V

Features

  • The self-contained, waterproof, SS901ZB water leak sensor with a 6.5 ft long sensor wire can be placed virtually anywhere, wirelessly communicating with the SC904ZB inline shut-off valve to protect your home
  • Adding additional SS901ZB sensors creates a network of leak detection for each SC904ZB shut-off valve
  • Communication with home automation system
  • Status monitoring
  • Wireless firmware updates
  • Automated flow control
  • Battery operated, waterproof sensor
  • Multiple water sensors can activate a single valve
  • Easy to install

Resources

Instruction/Installation Manual
Specification Sheet
