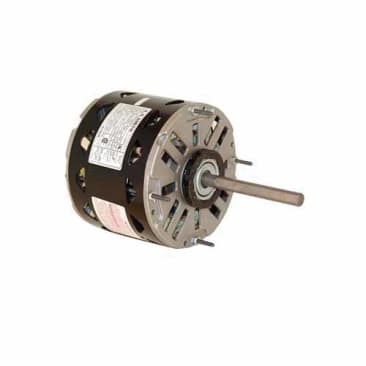

ECONOMASTER EM3585 Image 1

ECONOMASTER EM3585 UNIVERSAL FURNACE MOTOR

MFR Part #: EM3585
SKU #: 1237907
Brand: Century®
UPC: 786674019486
Regal by Packard EconoMaster® EM3585 Direct Drive Blower Motor, Open Enclosure, 1/3 hp, 115 VAC, 60 Hz, 1 ph, 48Y Frame, 1075 rpm Speed, Band/Ring/Stud Mount
CSA Certified | UL Listed

Regal by Packard EconoMaster® Direct Drive Blower Motor, Fan & Blower Motors Application, 1/3 hp, 115 VAC, 5.5/3/2 A, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, Open Enclosure, 48Y Frame, 1/4 in Dia x 4 in L Shaft, Reversible Rotation, Sleeve Bearing, Band/Ring/Stud Mounting, 40 deg C Ambient, Insulation Class: Class B

Product Details

Regal by Packard EconoMaster® Direct Drive Blower Motor, Fan & Blower Motors Application, 1/3 hp, 115 VAC, 5.5/3/2 A, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, Open Enclosure, 48Y Frame, 1/4 in Dia x 4 in L Shaft, Reversible Rotation, Sleeve Bearing, Band/Ring/Stud Mounting, 40 deg C Ambient, Insulation Class: Class B

Attributes

Amperage Rating: 5.5/3/2 A, 5.5 to 3 to 2 A
Application Type: Fan & Blower Motors
Bearing Type: Ball, Sleeve
Country Of Origin: China
Drive Type: Direct
Duty Type: Continuous
Enclosure Type: Open
Frame: 48Y
Frame Size: 48Y
Frequency Rating: 60 Hz
Horsepower: 1/3 hp
HP Rating: 1/3 hp
Insulation Class: Class B, B
Motor Enclosure Type: Open Air Over
Mounting Type: Band/Ring/Stud, Belly Band, Resilient Ring, Extended Stud
Number of Speeds: 3
Phase: 1, 1 ph
Power Rating: .25 kW
Rotation: Reversible
Rotation Type: Reversible
Shaft Size: 1/4 in Dia x 4 in L, 1/2 in Dia x 4 in L
Shaft Type: Flat
Speed: 1075 rpm
Speed Rating: 1075 rpm
Temperature Rating: 40 deg C Ambient
Voltage Rating: 115 VAC

Features

  • Auto protector
  • Energy efficient
  • 25 in L leads
  • 7.5 uF at 370 VAC capacitor required
