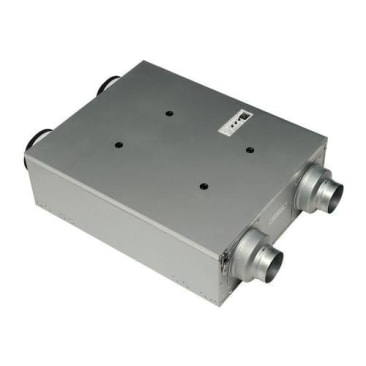

PANASONIC FV10VEC2 INTELLI-BALANCE 100 ANY CLIMATE ENERGY RECOVERY VENTILATOR WITH BOOST
Product Details
Attributes
Features
Resources
Panasonic Intelli-Balance™ 100 Energy Recovery Ventilator, Balanced Air Cold Climate, 120 V AC, 60 Hz Frequency, 50 to 100 cfm Flow Rate, Brushless DC Motor, 28-1/2 in Housing Length, 23 in Housing Width, 8-7/8 in Housing Height, 22 ga Steel Housing Material, Ceiling/Wall Mounting, Galvanized, Import
Intelli-Balance™ 100 is a powerful, high performance, high efficiency Energy Recovery Ventilator (ERV) that's designed to help you meet ASHRAE 62.2 requirements. This unique and cost effective ERV was engineered for total versatility and installation flexibility. Recommended for areas where temperatures can drop as low as -30 deg C (-22 deg F).
- New occupant controllable boost function
- Moves fan speed to high when activated
- Two powerful ECM motor with Smart Flow™ technology ensure optimum airflow by overcoming static pressure to effectively remove contaminated and replace it with fresh air
- Multi-speed selector (50 to 100 cfm) provides customizable airflow to create balanced, positive or negative pressure for supply and exhaust motor within the residential and commercial spaces
- Built-in ASHRAE 62.2 intermittent timing function helps ensure code compliance and simplifies the installation process
- Engineered for use in any North America climate zone
Product Details
Panasonic Intelli-Balance™ 100 Energy Recovery Ventilator, Balanced Air Cold Climate, 120 V AC, 60 Hz Frequency, 50 to 100 cfm Flow Rate, Brushless DC Motor, 28-1/2 in Housing Length, 23 in Housing Width, 8-7/8 in Housing Height, 22 ga Steel Housing Material, Ceiling/Wall Mounting, Galvanized, Import
Intelli-Balance™ 100 is a powerful, high performance, high efficiency Energy Recovery Ventilator (ERV) that's designed to help you meet ASHRAE 62.2 requirements. This unique and cost effective ERV was engineered for total versatility and installation flexibility. Recommended for areas where temperatures can drop as low as -30 deg C (-22 deg F).
Attributes
Features
- New occupant controllable boost function
- Moves fan speed to high when activated
- Two powerful ECM motor with Smart Flow™ technology ensure optimum airflow by overcoming static pressure to effectively remove contaminated and replace it with fresh air
- Multi-speed selector (50 to 100 cfm) provides customizable airflow to create balanced, positive or negative pressure for supply and exhaust motor within the residential and commercial spaces
- Built-in ASHRAE 62.2 intermittent timing function helps ensure code compliance and simplifies the installation process
- Engineered for use in any North America climate zone
