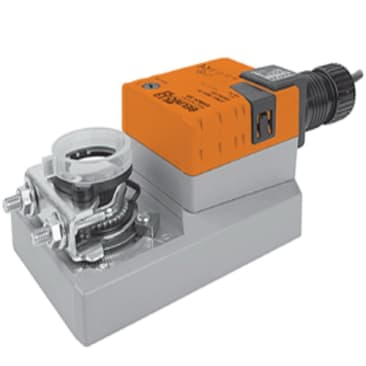

BELIMO AMB24-SR NON-SPRING RETURN ACTUATOR
Product Details
Attributes
Features
Resources
BELIMO® Damper Actuator, 24 VAC Supply, 2 - 10 VDC Position Feedback, 50/60 Hz, 2.5 W Running, 0.4 W Holding, 5 V-A VA, 3 ft 18 AWG Plenum Rated Cable with 1/2 in Conduit Electrical Connection, 95 sec Constant Running Timing, 20 N-m Torque, 100 kohm for 2 - 10 VDC (0.1 mA), 500 ohm for 4 - 20 mA Input, -30 to 50 deg C Ambient, -40 to 80 deg C Storage, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3.46 in L x 7.21 in W, Proportional Control Signal, Direct Coupled Mounting
- Electronic throughout 0 - 95 deg rotation overload protection, maximum 95 deg adjustable with mechanical stop angle of rotation
- Reversible with built-in switch
- Reflective visual indicator (snap-on) position indication
- External push button manual override
Product Details
BELIMO® Damper Actuator, 24 VAC Supply, 2 - 10 VDC Position Feedback, 50/60 Hz, 2.5 W Running, 0.4 W Holding, 5 V-A VA, 3 ft 18 AWG Plenum Rated Cable with 1/2 in Conduit Electrical Connection, 95 sec Constant Running Timing, 20 N-m Torque, 100 kohm for 2 - 10 VDC (0.1 mA), 500 ohm for 4 - 20 mA Input, -30 to 50 deg C Ambient, -40 to 80 deg C Storage, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3.46 in L x 7.21 in W, Proportional Control Signal, Direct Coupled Mounting
Attributes
Features
- Electronic throughout 0 - 95 deg rotation overload protection, maximum 95 deg adjustable with mechanical stop angle of rotation
- Reversible with built-in switch
- Reflective visual indicator (snap-on) position indication
- External push button manual override
