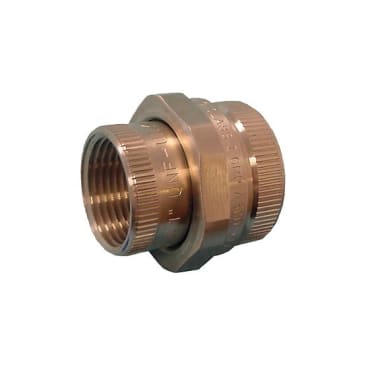

APPLETON UNY50NR-A Image 1
APPLETON UNY50NR-A Image 2
content loaded
APPLETON UNY50NR-A Image 1

APPLETON UNY50NRA 1/2 UNION CONNECTOR TYPE UNY

MFR Part #: UNY50NR-A
SKU #: 1243497
Brand: Appleton®
UPC: 78138123423
Appleton® UNILETS® UNY50NR-A Dust-Ignitionproof Explosionproof Conduit Union, 1/2 in, Copper Free Aluminum, Natural
Limited
For connecting conduit to enclosure
UL 886 | UL 1203 | UL File No. E10444 | Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class III | CSA C22.2 No. 25/30 | CSA 065181

Appleton® UNILETS® Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNY, 1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Copper Free Aluminum, Natural, 1.47 in OD x 2.147 in L

Appleton® UNY, UNF, and UNL explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures. They facilitate modifications and permit the removal of enclosures without turning or removing conduit. They are also available as expansion unions, which compensate for the expansion and contraction of conduit.

Product Details

Appleton® UNILETS® Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNY, 1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Copper Free Aluminum, Natural, 1.47 in OD x 2.147 in L

Appleton® UNY, UNF, and UNL explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures. They facilitate modifications and permit the removal of enclosures without turning or removing conduit. They are also available as expansion unions, which compensate for the expansion and contraction of conduit.

Attributes

Country Of Origin: Mexico
Dimensions: 1.47 in OD x 2.147 in L
Finish: Natural
Material: Copper Free Aluminum
Series: UNY
Size: 1/2 in
Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
Type: Dust-Ignitionproof Explosionproof

Features

  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces
  • Facilitates modifications, permits removal of enclosures without turning or removal of conduit
  • Nipple not removable
  • Male/female threaded connection

Resources

Specification Sheet
Warranty Information
