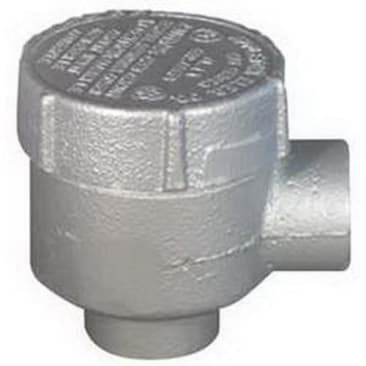

APPLETON GRJEA75 Image 1

APPLETON GRJEA75 3/4 TYPE TIGHT FITTING

MFR Part #: GRJEA75
SKU #: 1249442
Brand: Appleton®
UPC: 78138144045
Appleton® UNILETS® GRJEA75 Dust-Ignitionproof Explosionproof Raintight Conduit Outlet Box, 3/4 in, 2.13 in Cover Opening, 7.3 cu-in, Triple Coated
Limited
Internal Ground Screw
Indoor/Outdoor Applications
UL 886 | UL File No. E10444 | CSA File No. 025875, Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class III | RoHS Compliant

Appleton® UNILETS® Conduit Outlet Box, Dust-Ignitionproof Explosionproof Raintight, Series: GRJ, 3/4 in, 2.13 in Cover Opening Size, 7.3 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 2.88 in H x 2.88 in W x 2.06 in D

Appleton® explosionproof, dust-ignitionproof, raintight GRJ conduit outlet boxes are furnished with internal ground screw. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Product Details

Appleton® UNILETS® Conduit Outlet Box, Dust-Ignitionproof Explosionproof Raintight, Series: GRJ, 3/4 in, 2.13 in Cover Opening Size, 7.3 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 2.88 in H x 2.88 in W x 2.06 in D

Appleton® explosionproof, dust-ignitionproof, raintight GRJ conduit outlet boxes are furnished with internal ground screw. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Attributes

Country Of Origin: Mexico
Size: 3/4 in
Capacity: 7.3 cu-in
Cover Opening Size: 2.13 in
Dimensions: 2.88 in H x 2.88 in W x 2.06 in D
Finish: Triple Coated
Material: Malleable Iron
Series: GRJ
Suitable For Use With: Threaded Metallic Conduit System
Type: Dust-Ignitionproof Explosionproof Raintight

Features

  • Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • General purpose wiring
  • Externally threaded body with internally threaded cover
  • Small, round conduit outlet boxes
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion resistant
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintece
  • Chromate/epoxy powder coated/zinc electroplated finish

Resources

Specification Sheet
Warranty Information
