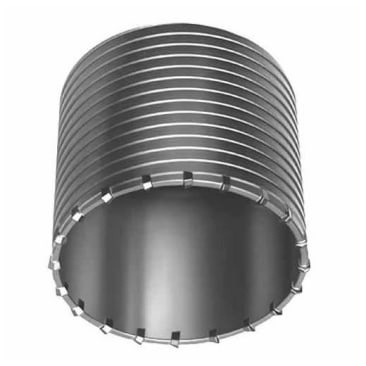

MILWAUKEE 48-20-5140 BIT THICK WALL CORE 2-1/2IN
Product Details
Attributes
Features
Resources
Milwaukee® Thick Wall Core Bit, Heavy Duty, 2-1/2 in Drill - Fraction, 2.5 in Drill - Decimal Inch, 4-3/8 in Cutting Depth, 12/18 in L Shank, SDS Max®/Spline Shank, Carbide Cutting Edge, Applicable Materials: Block, Brick and Concrete
Milwaukee®'s SDS-Max and spline thick wall core bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin.
- Thick wall design
- 2-1/2 in diameter
- Usable cutting depth 4-1/16 in
- Use with 12 in or 18 in spline adapter shanks (48-03-3564, 48-03-3565) and 12 in or 18 in SDS-Max adapter shanks (48-03-3572, 48-03-3573)
- Use with 7-1/2 in extension 48-95-6085
- Use with guide plate 48-20-5170 and centering pin 48-20-5199
Product Details
Milwaukee® Thick Wall Core Bit, Heavy Duty, 2-1/2 in Drill - Fraction, 2.5 in Drill - Decimal Inch, 4-3/8 in Cutting Depth, 12/18 in L Shank, SDS Max®/Spline Shank, Carbide Cutting Edge, Applicable Materials: Block, Brick and Concrete
Milwaukee®'s SDS-Max and spline thick wall core bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin.
Attributes
Features
- Thick wall design
- 2-1/2 in diameter
- Usable cutting depth 4-1/16 in
- Use with 12 in or 18 in spline adapter shanks (48-03-3564, 48-03-3565) and 12 in or 18 in SDS-Max adapter shanks (48-03-3572, 48-03-3573)
- Use with 7-1/2 in extension 48-95-6085
- Use with guide plate 48-20-5170 and centering pin 48-20-5199
