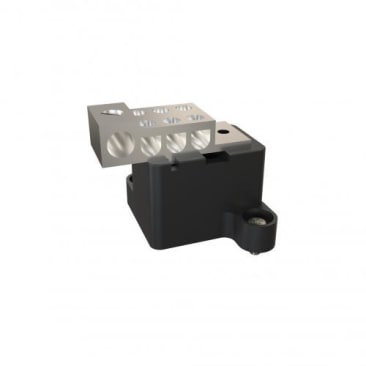

HAMMOND CSBL125T 125 AMP SPLITTER BLOCKS
MFR Part #: CSBL125T
SKU #: 0681300
Brand: Hammond®
UPC: 62398026387
Hammond® CSBL125T Trough Splitter Block, 600 V AC, 125 A, 14 to 1/0 AWG, 14 to 2 AWG Wire, 6/70 A Branch Lug
1 Year
Used in Hammond® standard splitter troughs and boxes
RoHS Compliant | CSA Certified
Product Details
Attributes
Features
Resources
Hammond® Trough Splitter Block, Series: CSBL, 600 V AC, 125 A Main Lug Amps, 14 to 1/0 AWG, 14 to 2 AWG Wire Capacity, 6/70 A Branch Lug Amps, Aluminum/Copper Conductor, Gray
Branch Lug Amps:6/70 A
Country Of Origin:Canada
Conductor Type:Aluminum/Copper
Finish:Gray
Main Lug Amps:125 A
Series:CSBL
Voltage Rating:600 V AC
Wire Capacity:14 to 1/0 AWG, 14 to 2 AWG
- Wall mounting
- The design includes the main and branch lugs which can use either copper or aluminum conductors
- Cu-Al monopiece connectors are secured to insulators, each block includes a main lug and branch lugs
- 14 to 1/0 main/6 x (14 to 2 AWG) branch
- All blocks are rated 600 VAC
Product Details
Hammond® Trough Splitter Block, Series: CSBL, 600 V AC, 125 A Main Lug Amps, 14 to 1/0 AWG, 14 to 2 AWG Wire Capacity, 6/70 A Branch Lug Amps, Aluminum/Copper Conductor, Gray
Attributes
Branch Lug Amps: 6/70 A
Country Of Origin: Canada
Conductor Type: Aluminum/Copper
Finish: Gray
Main Lug Amps: 125 A
Series: CSBL
Voltage Rating: 600 V AC
Wire Capacity: 14 to 1/0 AWG, 14 to 2 AWG
Features
- Wall mounting
- The design includes the main and branch lugs which can use either copper or aluminum conductors
- Cu-Al monopiece connectors are secured to insulators, each block includes a main lug and branch lugs
- 14 to 1/0 main/6 x (14 to 2 AWG) branch
- All blocks are rated 600 VAC
